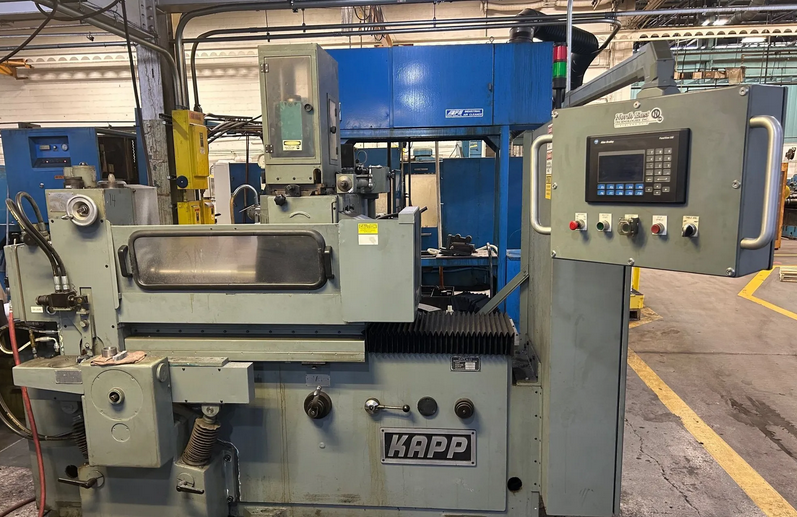

Kapp AST-305B 2200 rpm GEAR MACHINE

Index plates
Arbors
Dresser
Coolant systems
Spacers
Wheel mounts
Wheels

Maximum hob diameter: 12.0"
Maximum hob length: 27.56"
Maximum grinding wheel diameter: 12.0"
Maximum clamping length: 700 mm
Maximum workpiece diameter capacity: 300 mm
Maximum table traverse: 550 mm
Maximum center height: 155 mm
Table speed for deep grinding: 30–1000 mm/min
Table speed for surface grinding: 3–16 mm/min
Grinding spindle speed: 2200 rpm
Axial grinding spindle adjustment: 420 mm
Vertical grinding head adjustment: 300 mm
Indexing spindle taper Morse: 4
Pre-selectable single infeeds: 0–9999
Machine dimensions (L × W × H): 118" × 82" × 93"
Machine weight: 3000 kg
