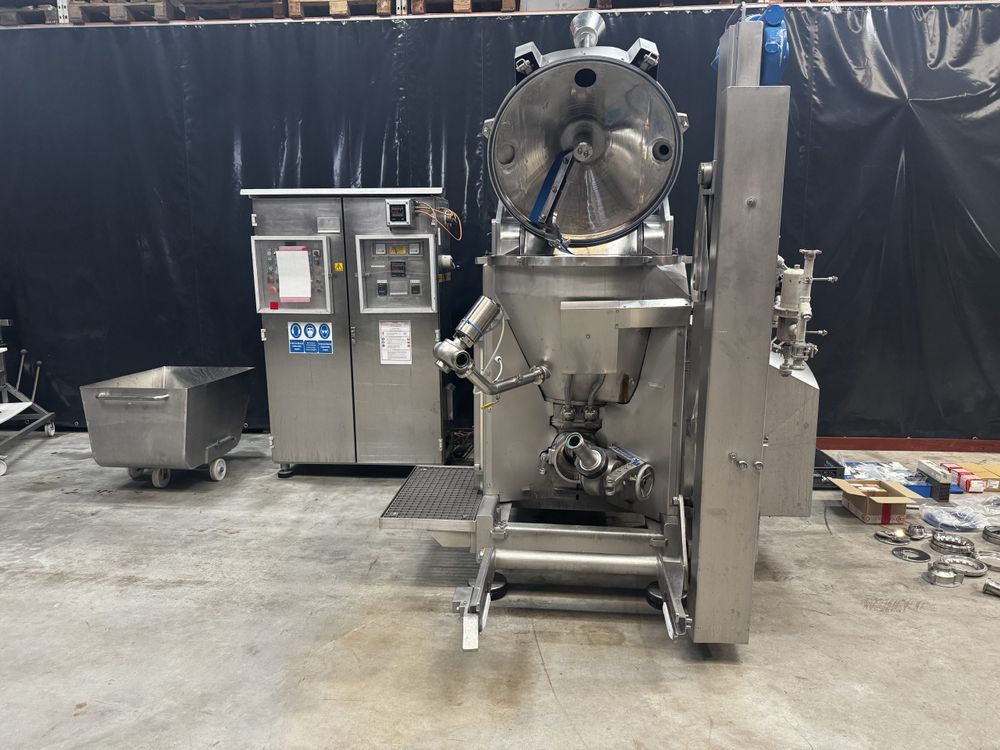

Karl Schnell FD3 Process automat Cutter-Mixer-Emulsifier

This machine combines in a unique way mixer,
cutter and emulsifier in a closed system.
The advantages are obvious:
– Space-saving by compact design,
– Complete evacuation of the product in the pre-cutting bowl under vacuum with simultaneous mixing and premincing,
– Stable end product with reproducible quality by fully automatic process control,
– The possibility for direct and indirect heating and cooling,
– The possibility to produce fine emulsion and paste-like masses as well as products with fine- up to coarse grained small pieces.

Hole Plate: 175 mm
Batch Capacity: 310 liter
Drive Emulsifier: 18/37 kW
Pre-mincing motor: 15/30 kW
Agitator motor: 0,7 kW
Revolution agitator: 13,3 min-1
Drive infeed screw: 1,5 kW
Machine Dimensions LxWxH: 2.250×1.800×2.100 mm
Machine Weight: 3.000 kg.
