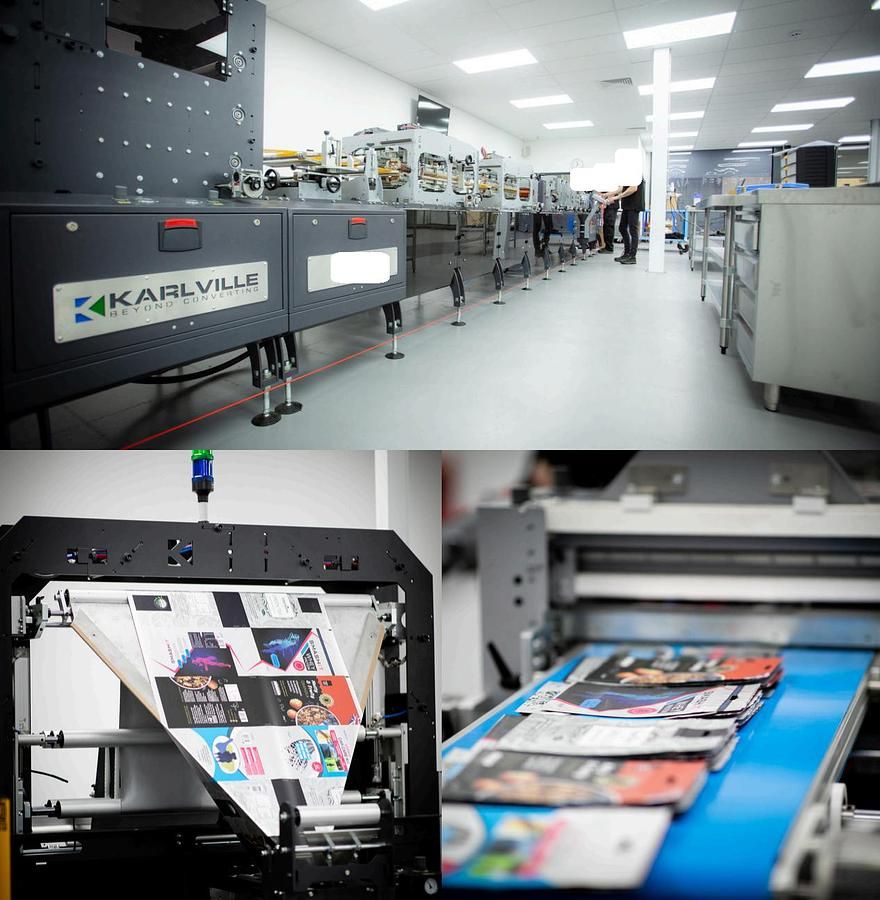

Karlville DSUP-400 Stand up pouch machine

Condition Used
Type of Pouch Produced:
3x side seal pouches (from 1 or 2 webs)
Stand up pouches (from 1 or 3 webs)
2x side seal pouches (Folded web)
With/without zippers or folded gussets

Pouch Width (mm) 400
Pouch Height (mm) 400
Gusset Depth Range (mm) 15-65
Machine speed 200 cuts per min
Material Thickness Range 55-200µ
Suitable for the following Materials PET, ALU, PE laminated with PP or PE
Anti Static System Yes

With the following additional extras...
Ultrasonic zipper crush station
Vacuum punch waste
Gusset folding upgrade
Second longitudinal station for smaller zipper pouches
Separate skirt seal for multi web pouches
Additional cross seal station for running mono materials
Double cut function
Additional trim rewinder
Mono gusset seperator
Extra punch bridge
