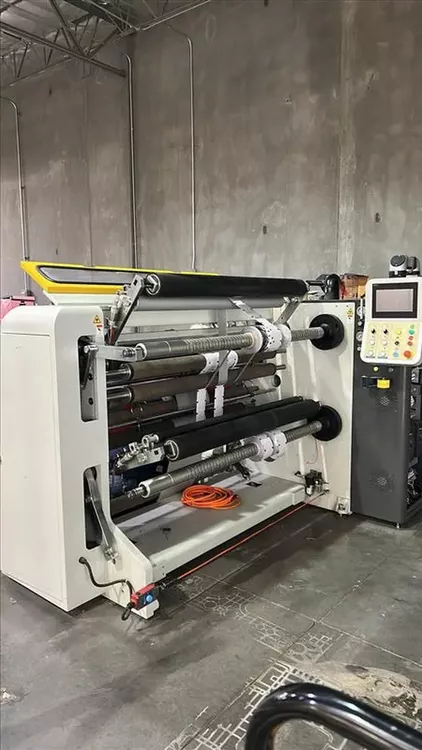

Karlville HS-Pro-1300 1300 mm

Web Width Max 1300 mm
Unwind Roll Diameter 1000mm Independent
Unwind Roll Weight Max 1,200 kg (2,645 Lbs)
Unwind Roll Cores 3” I.D. / 6” I.D. (option)
Finished Roll Diameter Max 610mm
Finished Roll Cores 3” I.D. / 6” I.D. (option)
Slit Width 50mm and Up (Lower Upon Request)
Knifes Shear, Razor & Pneumatic Shear with Tangential Web Path
Winding Tension 0.5 pli to 2.5 pli Standard
Machine Speed (Max) 500 m/min (Depending on Material Type/Quality)

Shrink Sleeve Materials
Plastic Films Made from PE, PP, PET, PVC, Papers and Laminates
(Depending on Material Type and Thickness)
Rigid Films: 10~200 micron / Soft Films: 12~300 micron
