Karlville HS PRO 1300 1300mm
AMERICA North (USA-Canada-Mexico)

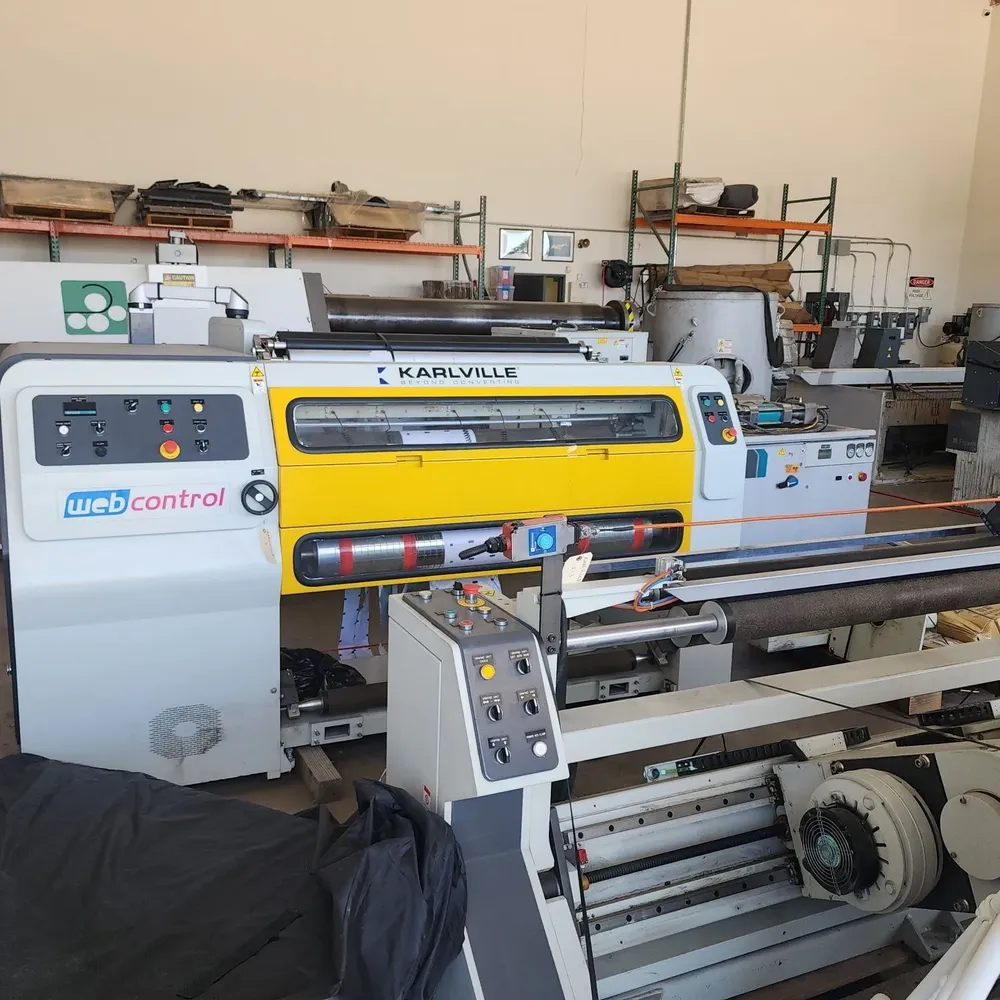

KARLVILLE HS PRO 1300 slitter rewinder for sale.
Max web width 1300mm,
Slit width 50mm+,
Machine speed up to 500 m/min
Suited for various films and papers
Features include shear and razor knives
Handles unwind rolls up to 1,200 kg.
Specifications
Web Width: Max 1300 mm
Slit Width: 50mm and Up (Lower Upon Request)
Unwind Roll Diameter: 1000mm Independent
Knifes: Shear, Razor & Pneumatic Shear with Tangential Web Path
Unwind Roll Weight: Max 1,200 kg (2,645 Lbs)
Winding Tension: 0.5 pli to 2.5 pli Standard
Unwind Roll Cores: 3” I.D. / 6” I.D. (option)
Machine Speed (Max): 500 m/min (Depending on Material Type/Quality)
Finished Roll Diameter: Max 610mm
Shrink Sleeve Materials: Plastic Films Made from
PE, PP, PET, PVC, Papers and Laminates
(Depending on Material Type and Thickness)
Rigid Films: 10~200 micron / Soft Films: 12~300 micron
Finished Roll Cores: 3” I.D. / 6” I.D. (option)
Machine is in storage, not currently under power
Seller will load machine
