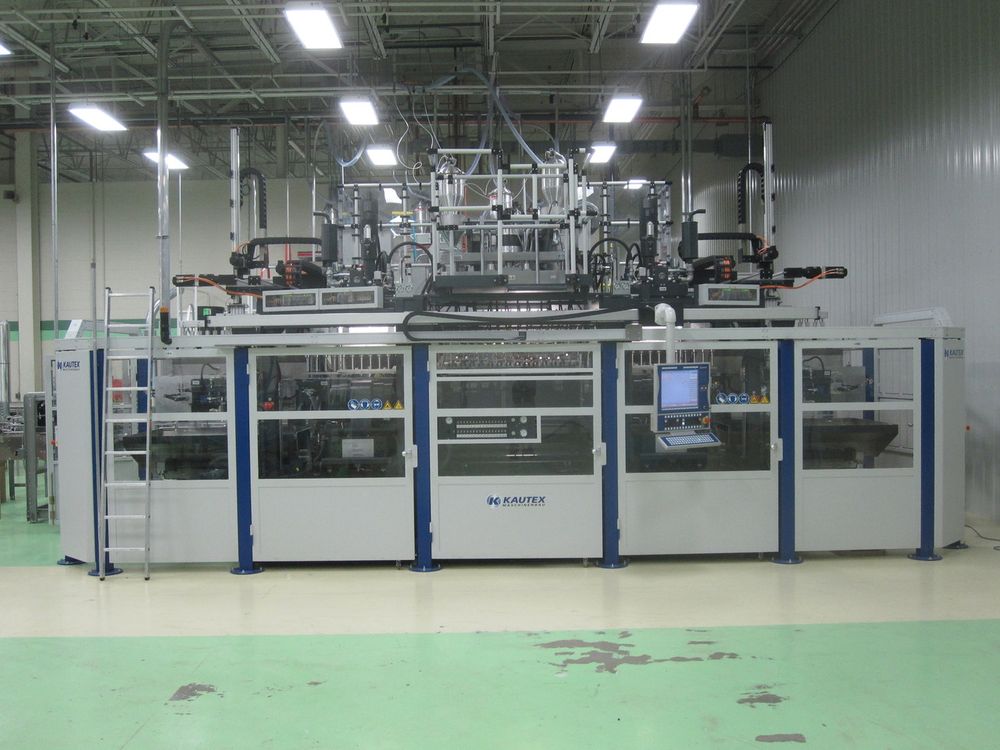

Kautex KLS 14-100D Co-Ex Continuous Extrusion Blow Molding Machine

Machine was built in Germany
Head configurations- (2) Willie Mueller heads included in offer:
Head #1– (12) parison head with 115 mm distance between die centers
Head #2– (15) parison head with 95 mm distance between die centers
(both can make a 3 layer bottle)
Press arrangement- dual sided
In machine trimming capability
Machine is equipped with (3) extruders and a head that can produce a
(3) layer bottle
Clamp width- 1470 mm
Clamp height- 375 mm
Closing stroke- 2 x 180 mm
Opening gap- maximum– 2 x 360 mm
Closing force- 40.8 metric tons
Mold width- maximum- 1470 mm
Mold height- maximum- 425 mm
Mold thickness- minimum- 2 x 180 mm
Machine dimensions- 9600 mm length x 8800 mm width (without cabinet)
x 4400 mm height
Cabinet width- 3600 mm
Power specifications- 460 volts- 3 phase- 60 cycles
Condition- Used- can be inspected in storage
