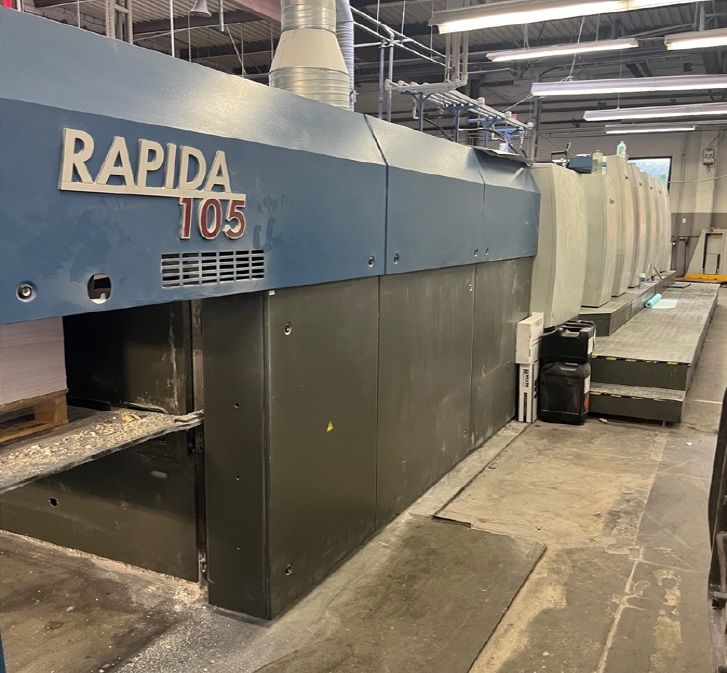

KBA RA105-5+L 720 × 1050 mm

TECHNICAL DATA:
Sheet Size:
Max.: 720 × 1,050 mm
Min.: 360 × 520 mm
Print Format:
Max.: 710 × 1,040 mm
Substrate Range:
Standard: 0.06 – 0.07 mm
Gripper margin: 10 mm
Production Speed:
Up to 16,000 sheets/hour (5 printing units + coating unit)
Pile Height (from floor):
Feeder: 1,300 mm
Delivery (paper): 1,200 mm
Delivery (non-stop mode): 1,100 mm
Plate & Blanket Sizes:
Plate size: 795 × 1,050 mm
Standard image start: 50 mm
Blanket size: 860 × 1,060 mm

ADDITIONAL EQUIPMENT:
5 colors and varnish
LithoFlash inline measuring system
Anti-static system at feeder, high-performance version incl. ionized side blowers
Intercom system between feeder and delivery
Fully Automatic Plate Change (FAPC), incl. pneumatic plate bending device on the gallery
Ink unit temperature control (without ductor cooling) incl. high-tech air-cooled combination chiller
Installation prepared for ink unit cooling
“beta.c” high-tech combination chiller for dampening solution, air-cooled with exhaust hood
CleanTronic – combined blanket, impression cylinder and roller washing system for conventional inks
Motorized reel winding system (Wickelsänder) incl. spare roll
Coating unit (L) with chamber doctor blade, without washing system, incl. one anilox roller
Coating supply & cleaning system for dispersion coatings, with viscosity-controlled pump and console integration
2400 mm extended delivery (Auslageverlängerung)
Unregulated air supply cabinet with exhaust hood
KBA VariDry IR/TL dryer installed in extended delivery
ErgoTronic ColorDrive – colour density measurement with X-measuring device at console
LogoTronic CIPLinkX, VM-based software for preset data transfer incl. computer/virtual machine
Manual plate punch (KBA)
Speed display
Central air supply
impressions: 181 million
