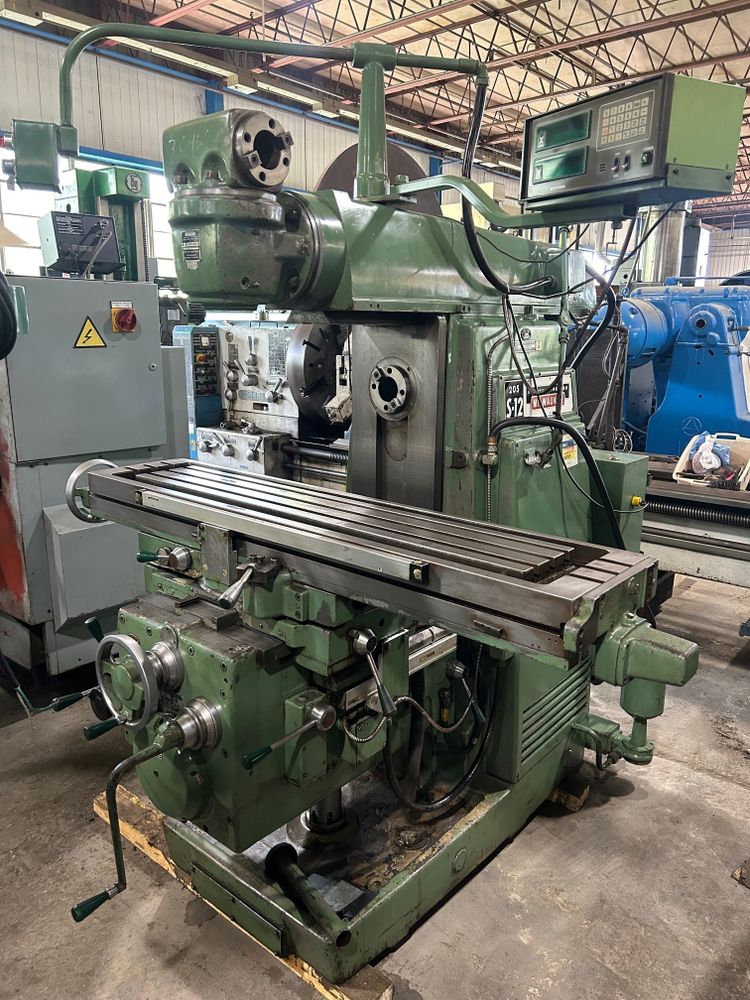

Kearney & Trecker 205 S-12 UNIVERSAL HORIZONTAL MILL 2,000 RPM

Table working surface: 12" x 56"
Table swivels left & right: 47°
Longitudinal travel: 28"
Cross travel: 10"
Vertical knee travel: 18"
Horizontal spindle taper: #50 NST
Vertical spindle taper: #50 NST
Horizontal spindle speeds (24): 25 – 2,000 RPM
Vertical spindle speeds (8): 100 – 1,600 RPM
Longitudinal and cross feeds (16): 1/4 to 32 IPM
Vertical knee feeds (16): 1/8 to 16 IPM
Rapid traverse longitudinal and cross: 150 IPM
Rapid traverse vertical: 75 IPM
Dimensions (approx): 48" x 84" x 84" high
Weight (approx): 8,000 lbs
Independent vertical overarm attachment with double swivel milling head
Universal saddle and block for swiveling table
Automatic backlash eliminator
Self-contained coolant system
1.5 HP individual feed and rapid traverse motor
3 HP ram spindle drive
5 HP horizontal spindle motor and electrical controls
