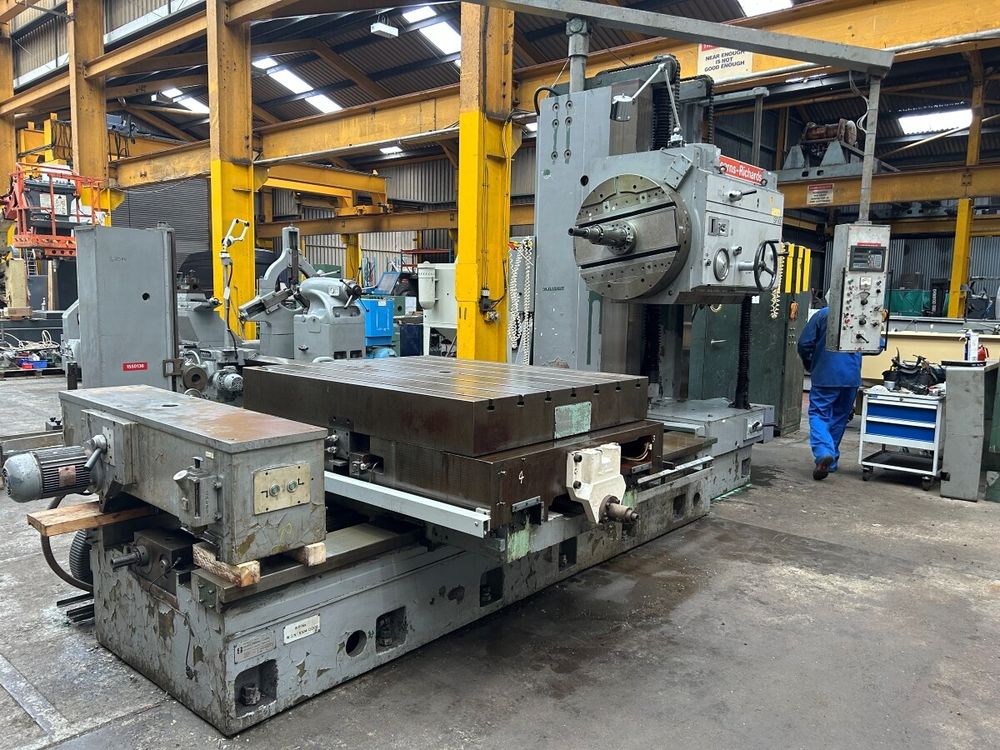

Kearns Richards S SF100 TABLE TYPE HORIZONTAL BORER 100 mm 1120 rpm

Spindle diameter 100 mm
Spindle speeds 2.2 – 1120 rpm
Spindle taper 50 Int
Spindle traverse 1000 mm

Facing head diameter 810 mm
Facing slide traverse 190 mm
Facing head speeds 2.2 – 224 rpm
Rotary table size 1500 x 1200 mm
Longitudinal traverse 1720 mm
Cross traverse 1362 mm
Vertical traverse 1186 mm
Feed rates (3 ranges) 2.3 – 2500 mm/min

Screw cutting 4 – 18 TPI
Screw cutting 2 – 10 mm pitch
Spindle motor 22 kW
Electrics 415 V, 3 phase, 50 Hz
Includes outer steady

Includes 2 line boring bars (75 mm & 100 mm diameter)
Newall DP700 3 axis DRO
Spindle brake
Lovo light

Steel telescopic guards for long and cross traverse
Facing slide tool holder
Approximate dimensions 6700 x 4700 x 3850 mm
Approximate weight 25,000 kg
