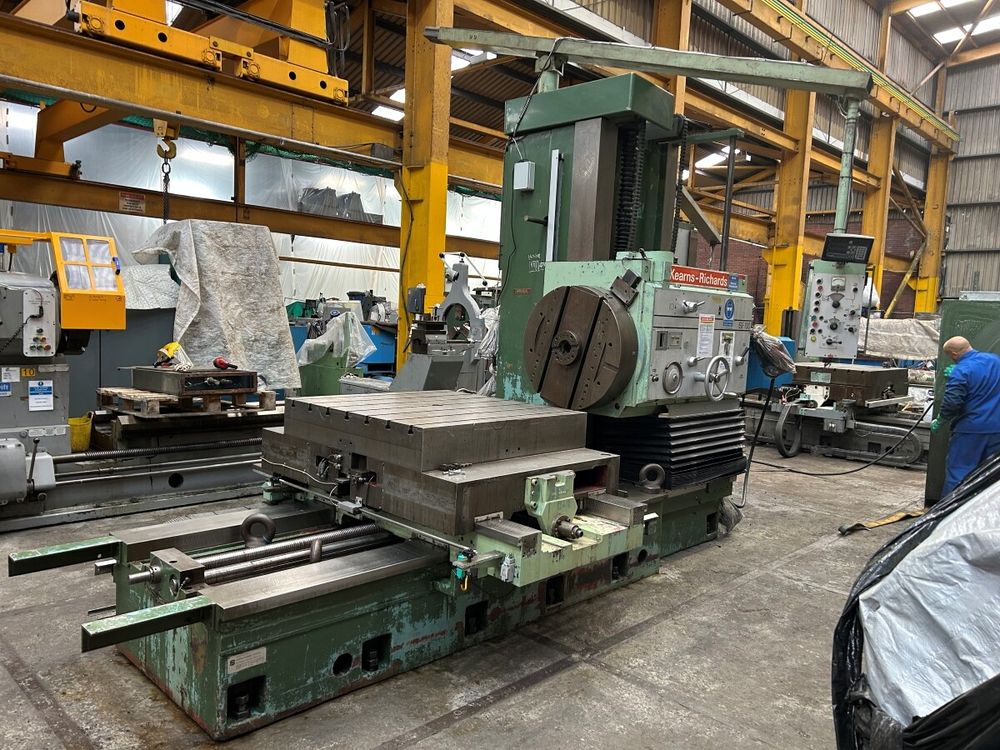

Kearns & Richards SF100 100 mm 1120 RPM

Spindle Diameter 100 mm
Spindle Speeds 22 – 1120 RPM
Spindle Taper 50 Int
Spindle Traverse 750 mm
Heavy Duty Milling Quill Diameter 225 mm
Facing Head Diameter 810 mm
Facing Slide Traverse 190 mm
Facing Head Speeds 2.2 – 224 RPM
Rotary Table Size 1200 x 1200 mm
Long Traverse 1350 mm
Cross Traverse 1200 mm
Vertical Traverse 1186 mm
Feed Rates 1.3 – 3820 mm/min (3 Ranges)
Spindle Motor 18.5 kW
Electrics 415 V, 3 Phase, 50 Hz
Equipped With Newall DP700 3 Axis DRO
Steel Telescopic Guards to Long & Cross Traverse
Facing Slide Tool Holder
Manual Rotary Table
Safety Brake
Power Draw Bar
Machine Dimensions 6150 x 4700 x 4000 mm
Machine Weight 25,000 kg
