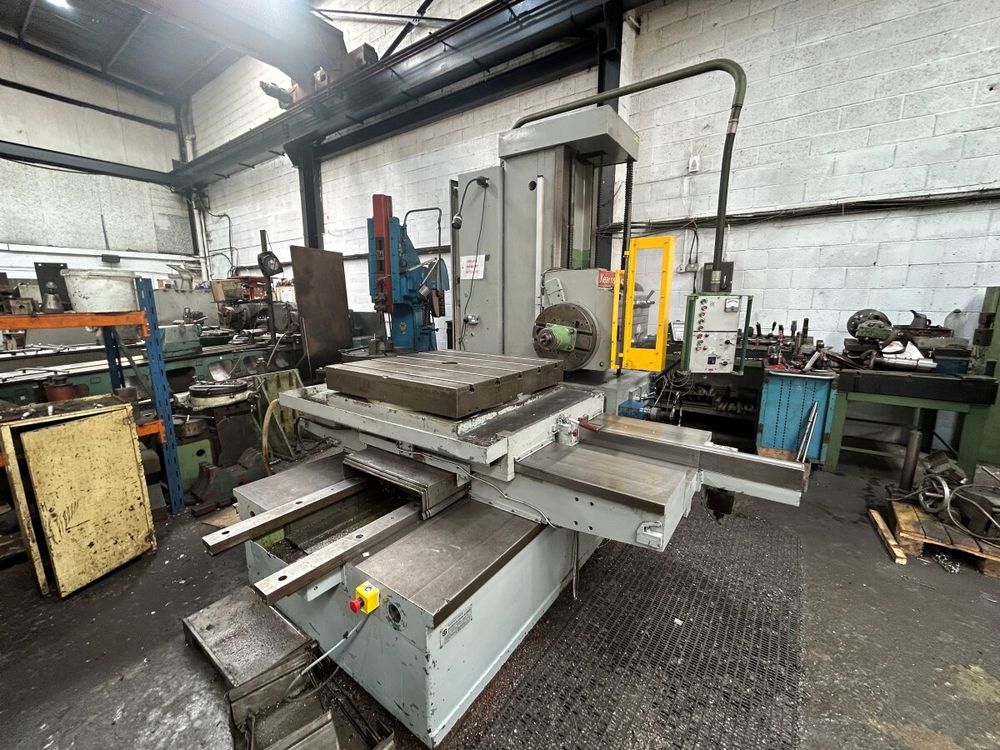

Kearns & Richards SH75 75 mm 1120 rpm

Table Type Horizontal Borer
Vertical Traverse: 1000 mm
Cross Traverse: 1245 mm
Longitudinal Traverse: 1000 mm
Spindle Traverse: 508 mm
Facing Slide Traverse: 180 mm
Feeds (X/Y/Z): 0.75 – 2500 mm/min
Spindle & Face Feeds: 0.25 – 830 mm
Screw Cutting to Table: 2 – 10 mm pitch / 4 – 16 TPI

Rotary Table Size: 1000 x 1000 mm
Maximum Table Load: 2000 kg

Spindle Diameter: 75 mm
Spindle Speeds: 5.6 – 1120 rpm
Spindle Taper: 40 INT

Facing Head Diameter: 508 mm
Facing Head Speeds: 5.6 – 280 rpm

Control: 3-axis DRO
Feeds System: Power feeds X/Y/Z
Tooling System: Facing head tool holders included
Screw Cutting Capability: Yes

Motor Power: 7.5 kW
Electrical: 415 V / 3 Phase / 50 Hz

Safety System: Operator safety guard
Lighting: Lovo light
Protection: Steel telescopic guards
Controls: Pendant control
Brake System: Safety brake
Spindle Support: Bearing support
Workholding: Power draw bar
Facing Head Lock: Included

Dimensions: 4200 x 2940 x 2950 mm
Weight: 10,500 kg
