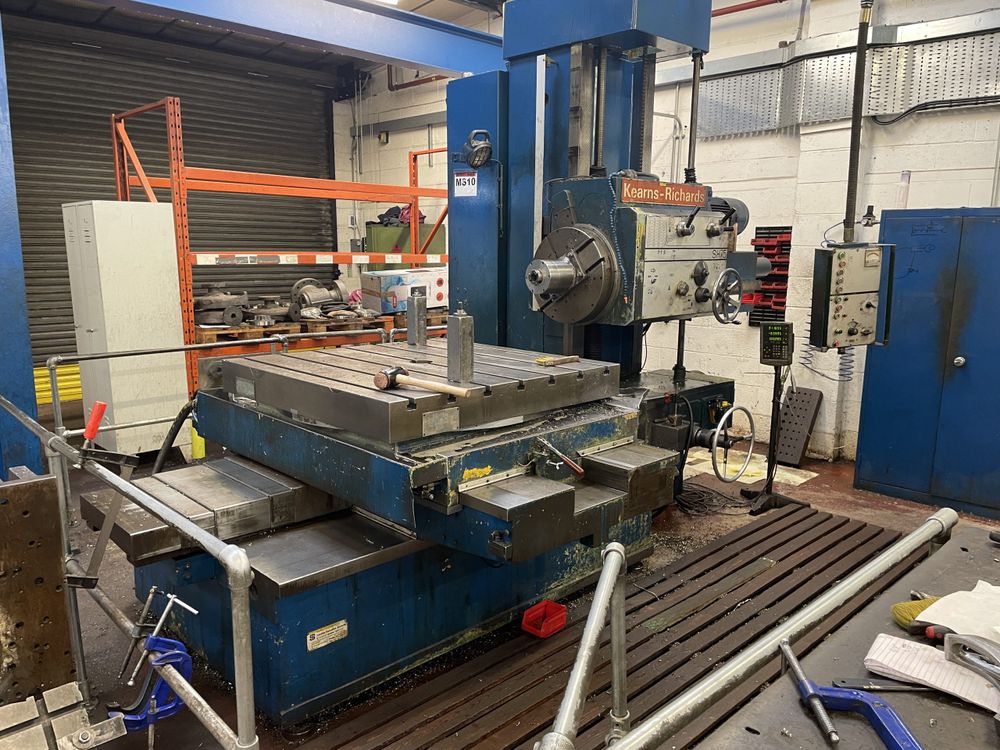

Kearns & Richards SH75 75 mm 1120 rpm
Ref :
2775831-3-GO
Condition :
Used
Manufacturer :
Kearns & Richards
Model :
SH75
Spindle Size :
75 mm
Spindle Speed :
1120 rpm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Longitudinal traverse: 1000 mm
Cross traverse: 1250 mm
Vertical travel: 1000 mm
Revolving table size: 1200 x 1200 mm
Spindle diameter: 75 mm
Spindle taper: 40 INT
Spindle axial travel: 500 mm
Spindle speed range: 5.6–1120 rpm
Main motor power: 10 hp
Facing head diameter: 508 mm
Facing head capacity: 868 mm
Facing slide travel: 180 mm
Facing head speed range: 5.6–280 rpm
Feed drive motor power: 3 hp
Maximum table load: 2030 kg
Machine weight: 11.5 t
Digital readout
Ball screws
