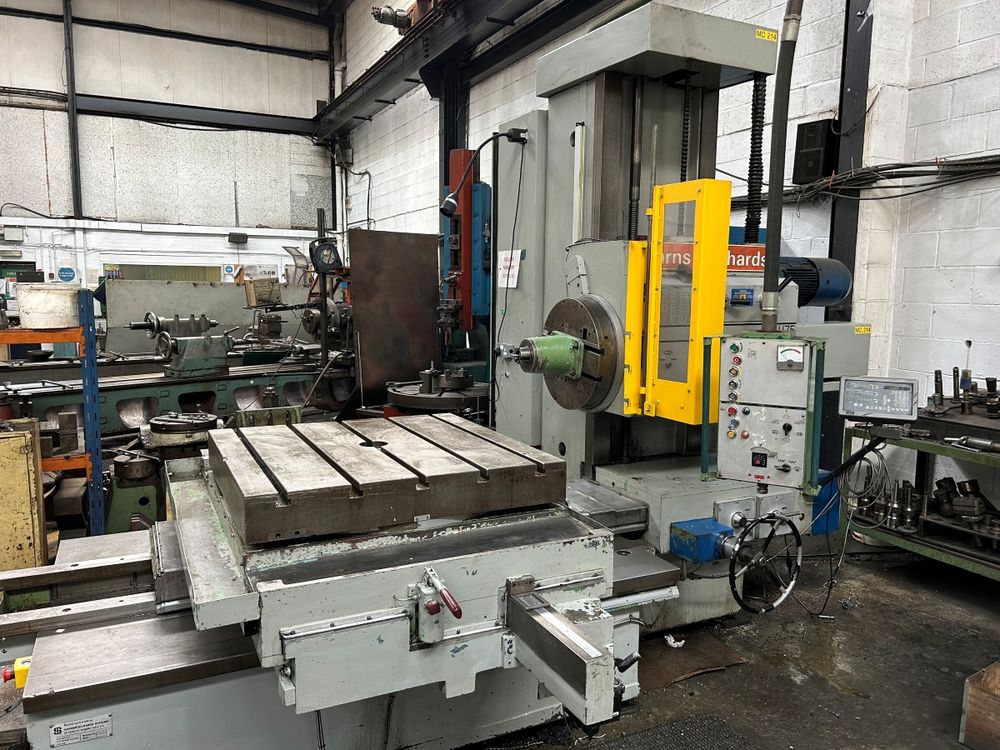

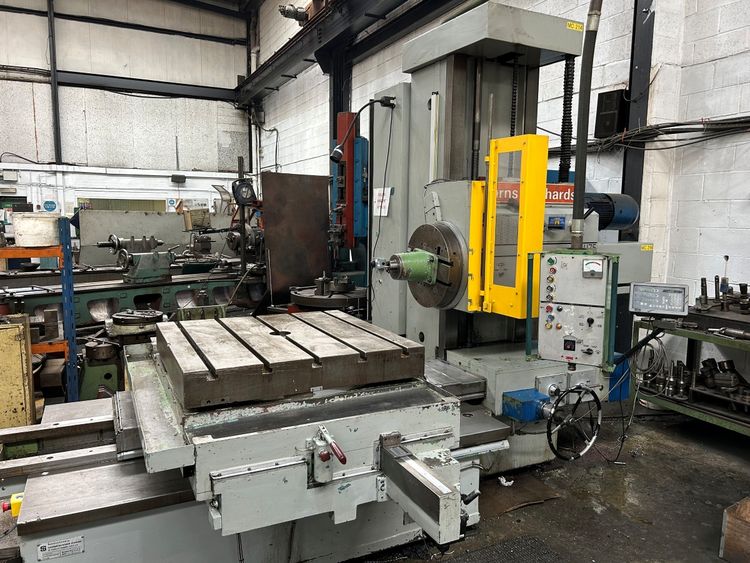

Kearns & Richards SH75 75 mm 1120 rpm

Rotary table size 1000 x 1000 mm
Max table load 2000 kg

Vertical traverse 1000 mm
Cross traverse 1245 mm
Longitudinal traverse 1000 mm

Spindle diameter 75 mm
Spindle traverse 508 mm
Spindle speed range 5.6–1120 rpm
Spindle taper ISO 40

Facing head diameter 508 mm
Facing slide traverse 180 mm
Facing head speed range 5.6–280 rpm

Feed rate (X/Y/Z) 0.75–2500 mm/min
Feed (spindle & face) 0.25–830 mm/min

Screw cutting range 2–10 mm pitch / 4–16 TPI

Motor power 7.5 kW
Electrical supply 415 V, 3 phase, 50 Hz

3-axis DRO
Steel telescopic guards
Operator safety guard
Pendant control
Power draw bar
Safety brake
Facing head lock
Spindle support bearing
Facing slide tool holder
Selection of spindle tool holders
Lovo light

Approximate dimensions 4200 x 2940 x 2950 mm
Approximate weight 10,500 kg
