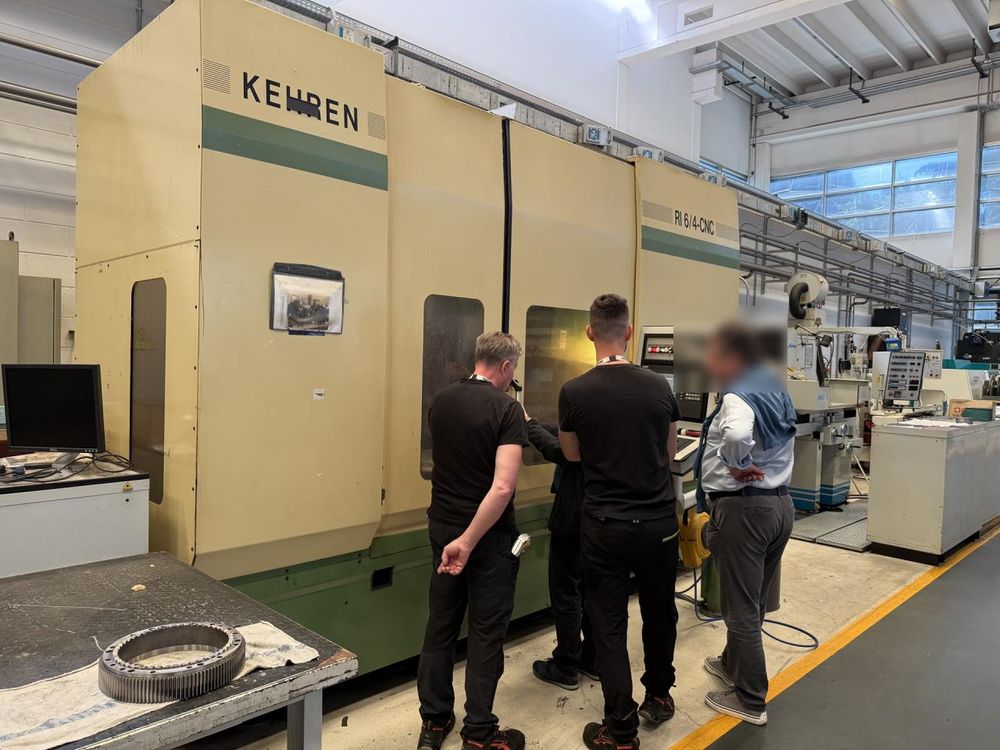

Kehren RI 6/4

CNC vertical grinding center
KEHREN RI 6/4

Travels:
X axis1720 mm
Y axis1100 mm

Workpiece dimensions:
Diameter1100 mm
Height600 mm
Weight1200 kg
B axis resolution max.360 °
Grinding wheel speeds: stepless
Spindle 1:170 - 24000 rpm
Spindle 2:1000 - 4500 rpm
Spindle 3:170 - 24000 rpm
Spindle 4:1200 - 4500 rpm
Spindle nose: HSK C63 V52

Machine's weight about14000 kg
Overall dimensions machine:
Width2450 mm
Height3600 mm
