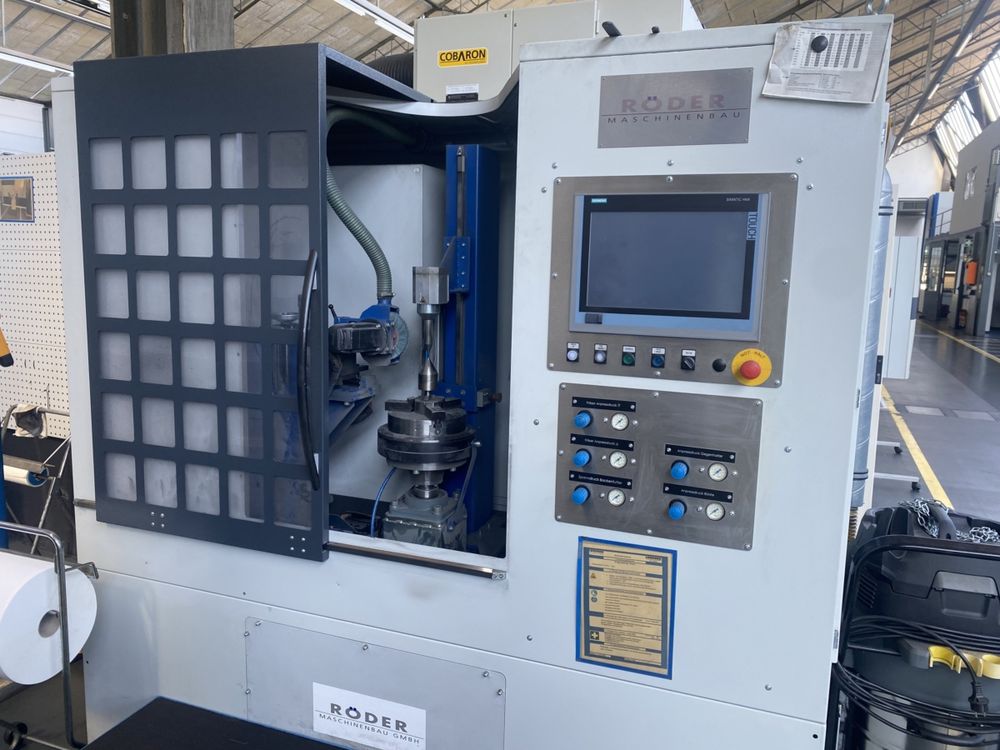

Röder Maschinenbau deburring machine gear cutting

Deburring and brushing of straight and helical teeth
Material type steel/cast steel
Max workpiece diameter 400 mm
Max workpiece height 350 mm
Min/max workpiece speed 2 to 15 rpm
Milling station X-axis travel 200 mm
Milling station Y-axis rotation 360°
Milling station Z-axis travel 450 mm
Milling spindle speed max 42,000 rpm (water-cooled)
Milling spindle collet ER11
Milling spindle clamping range 1 to 7 mm
Milling spindle contact pressure adjustable via pressure control valve
Working direction switchable between milling edge up/down
Quick station set-up via simple clamping
Adjustment via hand wheel X-axis and hand wheel Z-axis
Contact pressure can be switched off for adjustment work on milling station
Brushing station X-axis travel 200 mm + 80 mm wear adjustment
Brushing station Z-axis travel 450 mm
Brushing station swivelling ±°
Brushing spindle speed max 3,000 rpm (continuously adjustable)
Brushing spindle mounting Ø 25 mm
Max brush diameter Ø 200 mm
Brush width min/max 20 to 30 mm
Brush contact pressure via pressure control valve
Brush rotation direction selectable
Quick station set-up via simple clamping
Manual adjustment X-axis and hand wheel Z-axis
Contact pressure can be switched off for adjustment work on brushing station
Brush can be swivelled for helical gearing
