Studer S20 Favorit
EUROPE (Western and Northern)

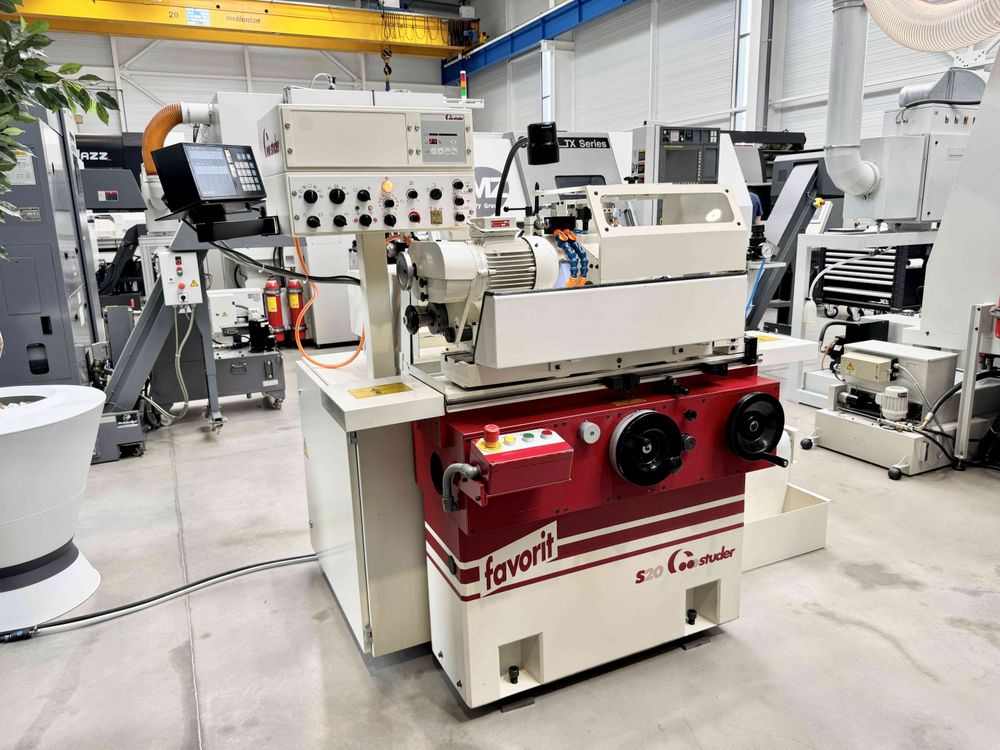

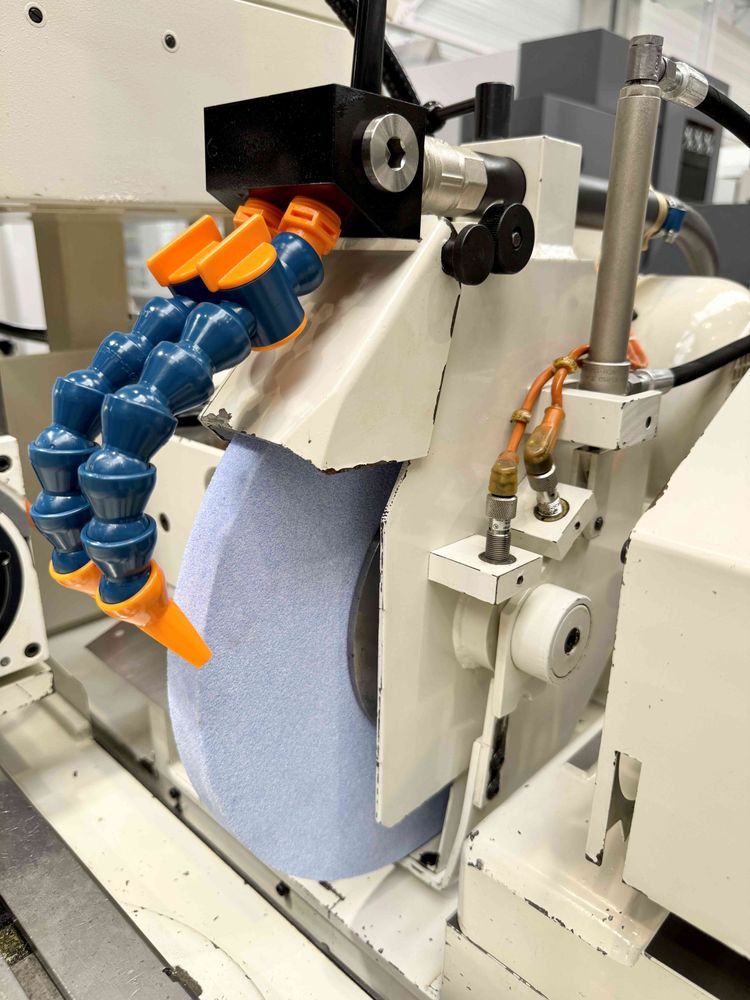

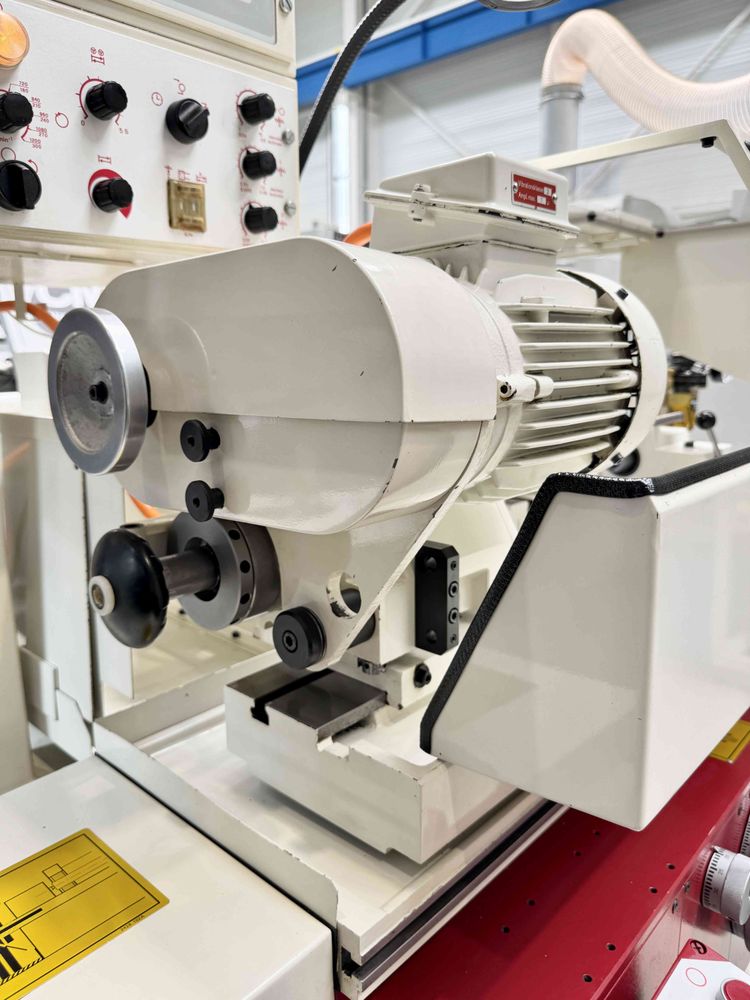

Cylindrical grinder STUDER S 20 Favorit
TECHNICAL CHARACTERISTICS:
Year of manufacturing: 1997
Centre distance: 400 [mm]
Height of centers: 100 [mm]
Stroke Z axis: 420 [mm]
Working feed Z axis: 100 - 3500 [mm/min]
Orientation of table: 0 - 30 [°]
Grinding spindle motor power: 3 [kW]
Max. diameter grinding wheel: 350 [mm]
Max. grinding wheel width: 30 [mm]
Grinding wheel bore: 127 [mm]
Workpiece spindle nose: W20
Workpiece spindle min. speed: 30 [rpm]
Workpiece spindle max. speed: 1200 [rpm]
Max. part weight in part holder headstock between centres: 20 [Kg]
Workpiece swiveling range: 0 [°] / +90 [°]
Workpiece spindle power: 0.5 [kW]
Type of attachment tailstock: MT2
Tailstock quill stroke: 20 [mm]
Supply voltage: 400 [V]
Total power required: 8 [kVA]
Machine dimensions: 2350 x 1480 [mm]
Weight: 1600 [Kg]
INCLUDED EQUIPMENT:

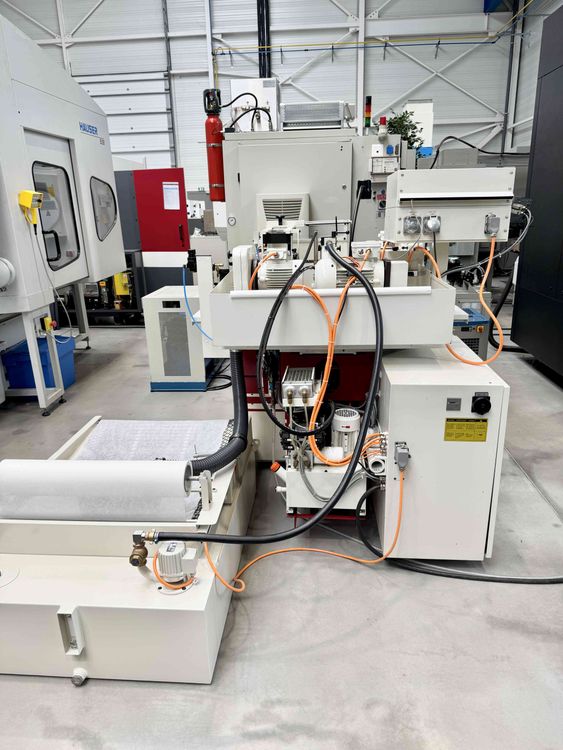

1 paper tape filtration device
1 SONY LH 31A 2 axis digital read out
1 WALDMANN LED lamp
1 internal grinding spindle type: 82060B / Speeds: 11,900 up to 28,400 [rpm]
1 SENSITRON contact indicator
1 grinding wheel balancing device
1 grinding wheel balancing arbor
1 three-jaw chuck FN Ø100 [mm] MT3
1 magnetic chuck Ø160 [mm] MT3
1 table-mounted wheel dresser
37 W20 collets
2 half-centres
2 full centres
1 blunt centre
1 pulley Ø105 [mm] for internal grinding spindle
2 external grinding wheel flanges
1 TYROLIT 494271 grinding wheel for external grinding operations
Various PCD internal grinding wheels
4 driving carriers
Various miscellaneous
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
