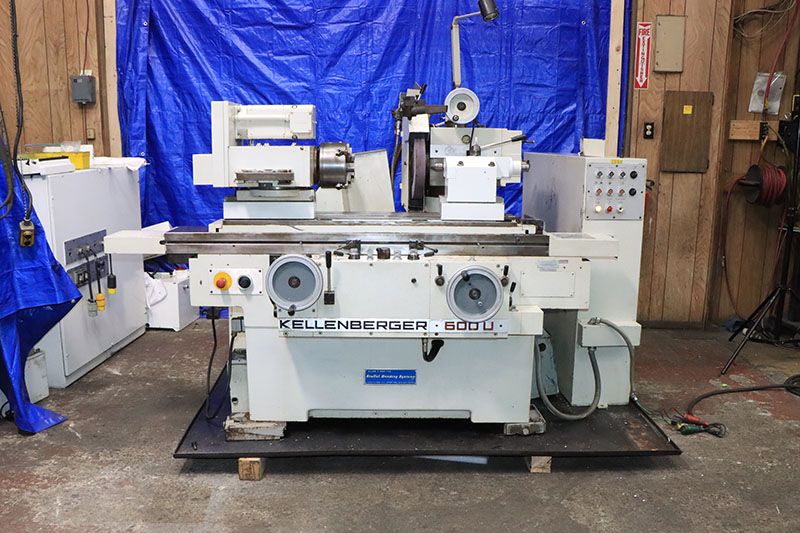

Kellenberger 600U

Swing: 9.8"
Swing with 75mm Riser Blocks: 15.9"
Maximum Swing with Optional Riser Blocks: 19.8"
Distance Between Centers: 23.625"
Maximum Distance Between Centers: 29.5"
Longitudinal Table Travel: 35.4375"
Longitudinal Table Travel per Handwheel Turn (Coarse): 0.8"
Longitudinal Table Travel per Handwheel Turn (Fine): 0.1"
Longitudinal Table Speed: 0 – 20 FPM
Table Swivel: 11°
Reversing Dwell: 0 – 5 Seconds
Feed Scale Graduation: 0.0002"
Automatic Hydraulic Infeed: 0 – 0.037"
Auto Infeed per Table Reversal: 0.00004" – 1.18"
Plunge Grinding Infeed Speed: 0.00001" – 0.0001" IN/S
Micrometer Stop Graduation: 0.00005"
Wheel Slide Transverse Movement: 8.656"
Infeed per Handwheel Revolution (Coarse): 0.3"
Infeed per Handwheel Revolution (Fine): 0.04"
Hydraulic Rapid Wheel Slide Stroke: 1.5625"
Grinding Wheel Speeds: 1,500 / 1,700 / 2,200 RPM
Cylindrical Grinding Wheel: 16" x 2" x 5"
Face Grinding Wheel: 9" x 0.5" x 3"
Grinding Head Swivel: 270°
Workhead Spindle Speeds: 6 – 600 RPM
Workhead Swivel: 360°
Work Spindle Taper: #5MT
Tailstock Spindle Taper: #4MT
Tailstock Spindle Stroke: 1.1875"
Hydraulic Operation
Single Lever Control
Infinitely Variable Table Traverse
Automatic Infeed
Plunge Infeed
Rapid Wheel Advance
Rapid Wheel Retraction
Sparkout Timer
Left-Hand Wheel Mounting
Right-Hand Wheel Mounting
15.9" Swing Riser Blocks
Adjustable Rise & Fall Wheelhead
Sine Bar Option
Swing Around Internal Grinding Attachment
1 Internal Grinding Spindle
16" x 2" O.D. Wheel
8" 4-Jaw Chuck
No. 5MT Adaptor
Backplate
Draw Bar
Dual Live & Dead Workhead Spindle
Variable Speed Control Unit
Wheelhead Motor: 4 HP
Work Light
Coolant System
Guarding
Electrics: 3/60/460
Machine Dimensions: 102" x 64" x 66"
Machine Weight: 6,000 lbs
