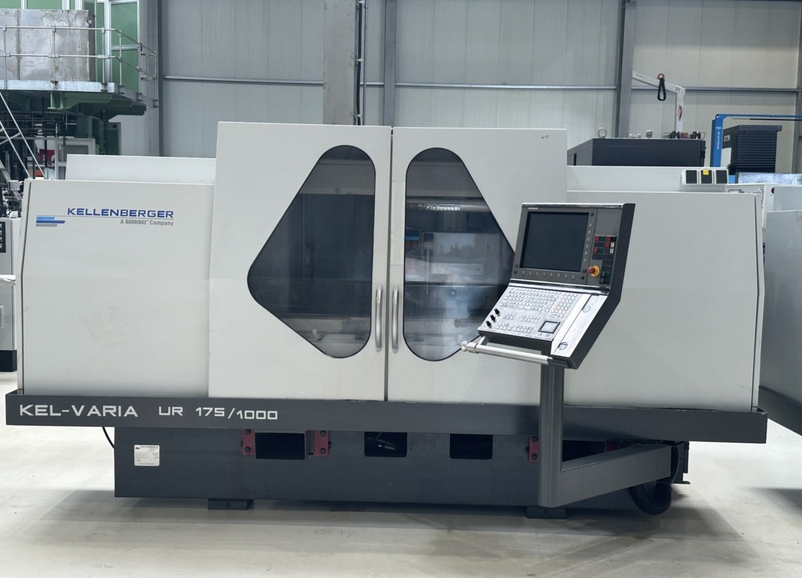

Kellenberger KEL-VARIA UR175-1000

Grinding diameter 350 mm
Grinding length 1000 mm
Centre height 175 mm
CNC-controlled B axis for grinding heads with GRINDplusIT
CNC-controlled C axis for workpiece spindle head
Flow coolant supply through the workpiece spindle
Kel-ASSIST 100 d/e/f metric/inch
GRINDplusIT constant speed 35 m/s or 45 m/s
Workpiece spindle head MK 5 DIN 55026 size 5"
Spindle motor power 10.0 kW
Internal grinding attachment 120 mm T3 for belt-driven internal grinding spindles
Internal grinding spindle Fischer max. 28,000 rpm
Grinding wheel equipment T1 500x80x203.2 mm
Grinding wheel equipment T2 400x50x127 mm
Grinding wheel equipment SS-Flange for 300, 400, 450 mm, bore 127 mm, taper 1:10
Grinding wheel equipment SS-Flange for 450, 500 mm, bore 203.2 mm
Tailstock with manual retraction
Tailstock with micro-adjustment
Dressing device on lower table behind W-spindle stock and tailstock
KELPOS active longitudinal positioning MOVOMATIC mounted on grinding head
Special curved measuring arm MOVOMATIC stylus 6 mm
KELSET tool measuring system KELSET MARP
KEL-TOUCH infeed sensor
Paper band filter USB with magnetic separator type SA 85/KE 585
Exhaust system IFMC 1800
Overhauled in 2018
Delivered with maintenance and measurement protocol
Optional CNC-controlled radius dresser available
