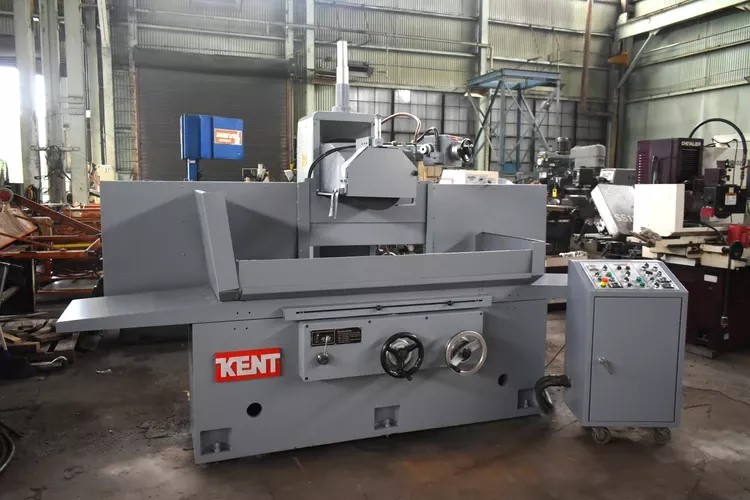

Kent KGS-510AHD

Table working surface width: 19.75 in
Table working surface length: 39.5 in
Maximum grinding width: 20.125 in
Maximum grinding length: 40.125 in
Spindle center to table (max): 23 in
Grinding wheel diameter: 12 in
Grinding wheel width: 1.5 in
Grinding wheel bore: 5 in
Grinding wheel speed: 1740 rpm
Table longitudinal feed range: 13–73 fpm
Incremental power downfeed range: 0.0002–0.0016 ipr
Power column cross feed: 60 ipm
Spindle motor power: 5 hp
Hydraulic motor power: 3 hp
Overall dimensions (L x W): 130 in x 83 in
Overall height: 83 in
Machine weight: approx. 11,000 lb

Features / equipment
Horizontal-spindle surface grinder
Hydraulic table feed
Electro-magnetic chuck (Kanetsu)
Over-the-wheel dresser
Automatic incremental power downfeed
Power column cross feed
Automatic lubrication system
Coolant system
Stand-alone control console
