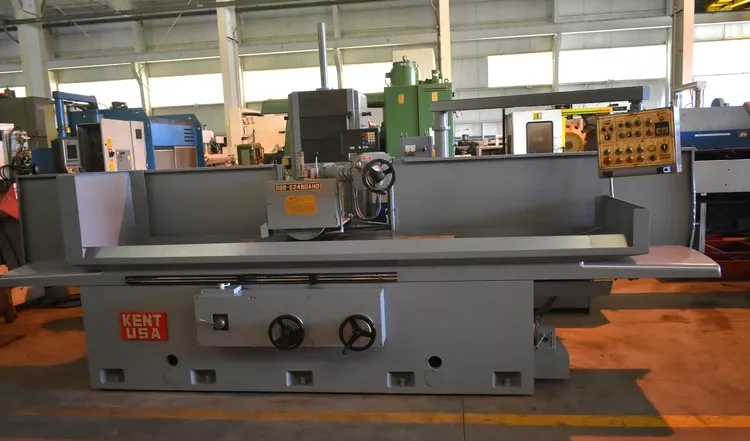

Kent USA SGS-S2460AHD

Table Width: 24"
Table Length: 60"
Table Longitudinal Travel: 65"
Table Cross Travel: 25.6"
Spindle-Center to Table, Maximum: 23"
Grinding Wheel Diameter: 16"
Grinding Wheel Width: 2"
Grinding Wheel Hole Diameter: 5"
Grinding Spindle Speed: 1750 RPM
Incremental Automatic Downfeed: .0001" to .0333"
Grinding Wheel Spindle Motor: 10 HP
Hydraulic Motor Horsepower: 5 HP
Overall Dimensions, L-R x F-B: 136" x 98"
Weight: 13,500 LBS

Newall Topaz 3-Axis Digital Readouts
24" x 60" Kanetsu Electro-Magnetic Chuck w/Controls
Traveling Column Design
Above Wheel Dresser
Incremental Automatic Cross Feed
Power Downfeed w/Automatic Downfeed Controller
Surface & Slot Grinding Modes (Selectable)
Coolant Filtration System (Tank & Pump)
Skid With Extra Wheel Hubs And Spare Parts
