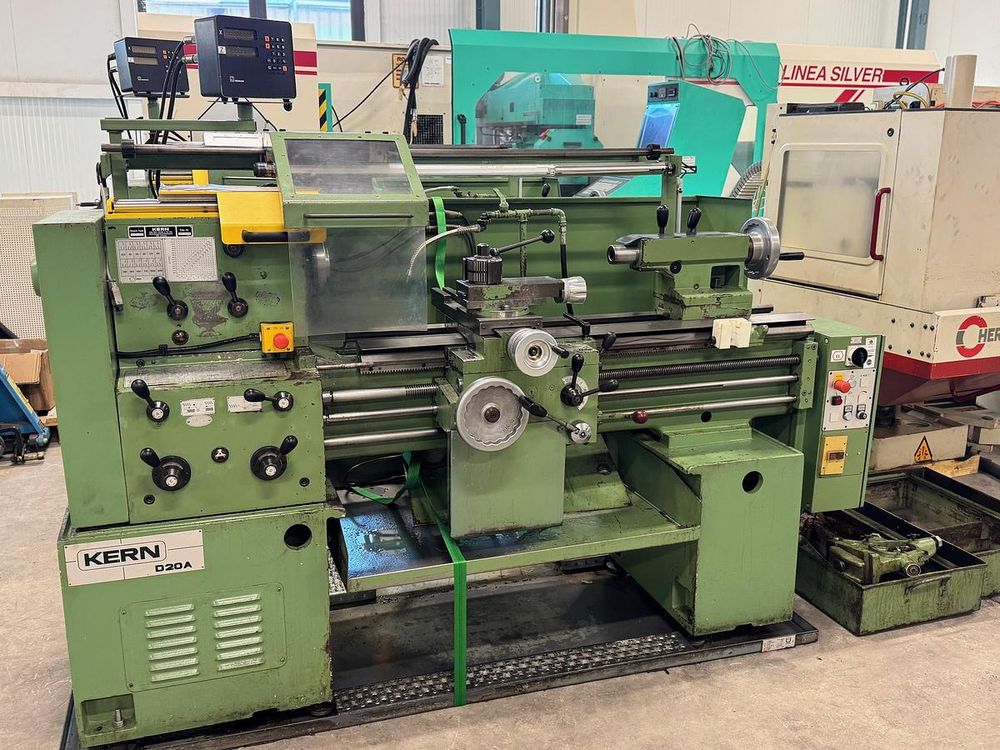

Kern Engine Lathe 1200 min⁻¹ D 20 A

Tip height 200 mm
Swing over bed approx. 400 mm
Turning diameter over cross slide approx. 200–250 mm
Tip width 1000 mm
Spindle bore 52 mm
Spindle connection Camlock
Speed range 12–1200 min⁻¹
Main motor 5–11 kW
Peak taper MK4 or MK5
Length 2.2–2.6 m
Width 1.0 m
Height 1.4–1.6 m
Weight 1500–2000 kg

Features / Equipment
Longitudinal and transverse feed via feed gear
Metric and imperial threading capability
Lead screw
Feed screw
Automatic feed with protective clutches
Massive cross slide
Massive top slide
Top slide swivels ±45°
Central lubrication for guideways
Adjustable wedge strips
Spindle extension via handwheel
Longitudinally adjustable tailstock
Heavily ribbed cast iron bed
Flat or prism-guided bed
One-piece bed
Precision-ground guideways
Coolant pump
Electrical system with rotation direction switch
Emergency stop
Main switch
