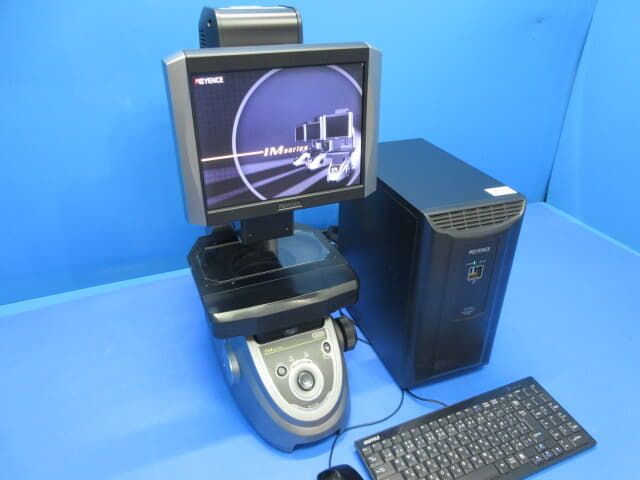

Keyence IM-6600

• Measuring head: IM-6120
• Image sensor: 6.6-megapixel CMOS (monochrome)
• Display: 10.4-inch LCD color monitor
• Field of view: φ100 × L200mm (wide field measurement mode), □25 × L125mm (high-precision measurement mode)
• Minimum display unit: 0.1 μm
• Measurement accuracy: ±5μm (wide field measurement mode), ±2μm (high-precision measurement mode) without linkage.
With linkage ±(7+0.02L)μm (wide field measurement mode),
±(4+0.02L)μm (high-precision measurement mode)
• Lighting: Telecentric transmitted illumination, 4-segment ring illumination,
External LED lighting (white coaxial epi-illumination 70 CA-DXW7)
Stage: X: 100mm (motorized), Z-axis 30mm (motorized)
• Weight capacity: 2kg
・Power supply: AC100V to 240V, 50/60Hz
• Weight: Approximately 8 kg (controller), approximately 28 kg (measuring head)
