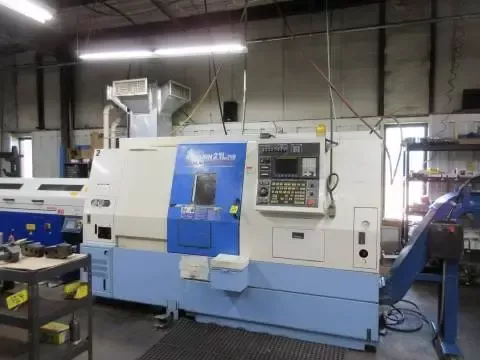

KIA Fanuc OiTB CNC control 4000 RPM SUPERTURN 21L 4 Axis

X axis travel: 8.2 in
Z axis travel: 21.6 in
B axis travel: 29.5 in
rapid traverse X: 1417 IPM
rapid traverse Z: 1417 IPM
rapid traverse B: 1181 IPM
C axis: full C axis on main spindle
Fanuc OiTB CNC control
bar capacity: 2.56 in
actual swing over bed: 21.6 in
maximum turning diameter: 13.8 in
maximum turning length: 20.9 in
spindle speed: 25–4000 RPM
spindle motor: 20 HP
spindle nose: A2-6
hole through spindle: 2.99 in
sub spindle speed: 5000 RPM
sub spindle motor: 5 HP
milling spindle speed: 4000 RPM
milling spindle motor: 5 HP
turret stations: 12
approximate machine weight: 10,600 lbs

Fanuc OiTB CNC control
ATS S26 collet chuck
16C collet chuck on sub spindle
full C axis on main spindle
automatic parts catcher
MTA Super 80 short magazine bar feed
tooling
chip conveyor
