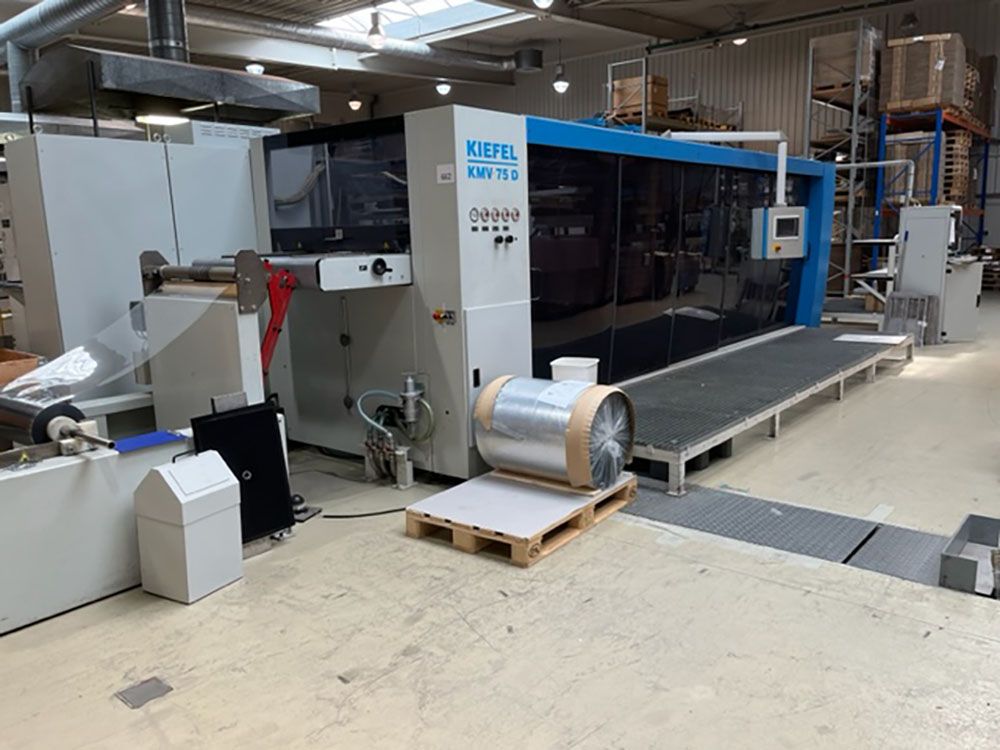

Kiefel 75 D

Max forming area: 750x540 mm
Min forming area 400x250 mm
Formed parts height positive: 150 mm
Formed parts height negative: 50 mm
Film width max: 800 mm
Operating hours: 18775h
Material: BOPS, PP, HIPS, PS, PVC, PET, ABS
Forming station force: 10 tons
Punching station force: 70 tons
Material thickness (min): 0,2 mm
Material thickness (max): 1,5 mm
Heating power: 51,75 kW
Total connected power max: 104 kVA
Operating voltage: 3x400V+N+PE/50Hz
Operating pressure: 6 bar
Compressed air consumption: 165 m3/h
Compressed air consumption without forming air: 35 l/min
Cooling water consumption: 50 l/min
Cycle per minute max: 30 cycles/min
Dimensions: 9251 x 2620 x 2718 mm
SIEMENS PLC Control system
New chain rail system in 2018
