Kiefel KMD 52 BFS

Roll automatons forming and punching separately
Condition Very good Condition
Hours 76000

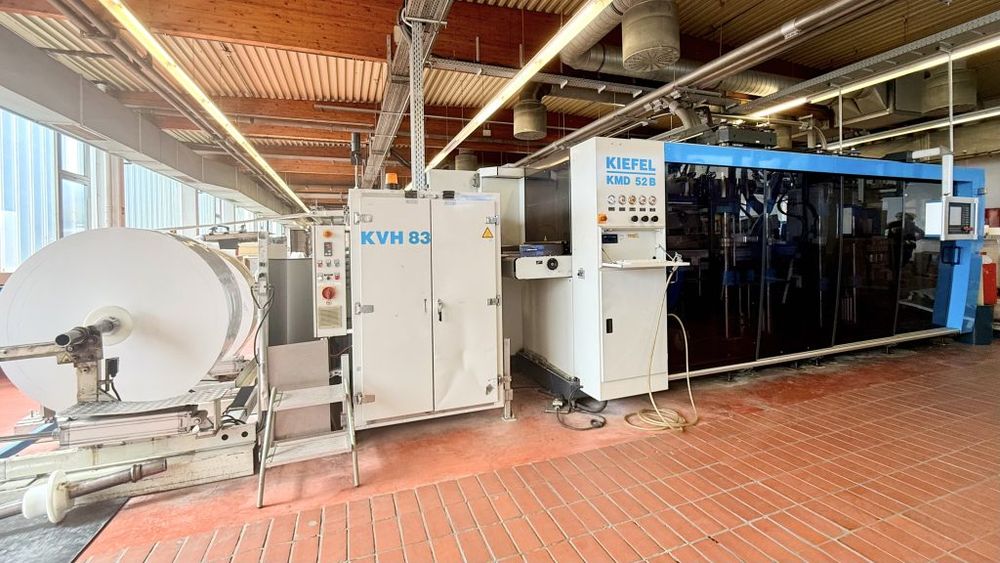

3 stations Thermoforming machine with cutting in the moulding station, separate punching and stacking.
Winding for large foil roll and Kiefel preheating station.
Residual material winder as well as inline mill if required.
The Kiefel KMD 52 BFS is a servo-driven roll moulding and punching machine
(BFS = Forming and Punching Station Separate) for the production of packaging containers.
It processes materials such as PET, PS, PP, PE and PVC.
Here are the central technical specifications at a glance: Mold range & toolForm area (max.): 520 x 400 mm
Tool dimensions (max.): 540 x 420 mm
Drawing depth (positive/negative): Max. 120 mm
Foil & Material
Film width (max.): up to 560/570 mm
Material thickness: 0.2 mm to 1.2 mm
Performance & Parameters
Cycle count: Up to 60 cycles per minute (dry)
Operating air pressure: 6 bar
Punching force (BFS station): Up to 500 kN
