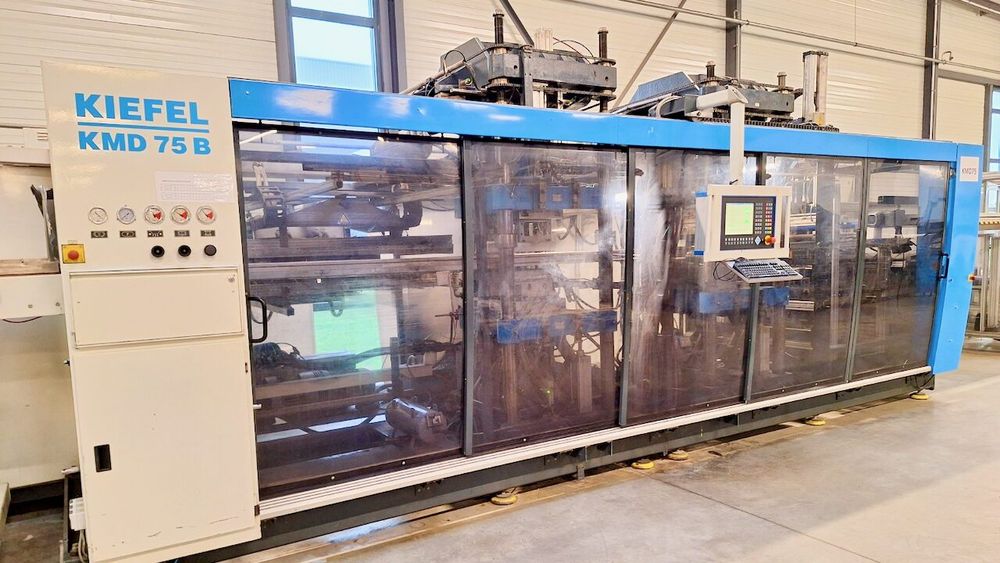

Kiefel KMD 75B

Automatic roll-fed separate forming/punching
Very good Condition
In Production
69313 hours

Max. Forming area – 750 x 540 mm
Min. Forming area – 375 x 270 mm
Max. Tool dimensions – 770 x 560 mm
Positive formed part height – 150 mm
Negative formed part height – 150 mm
Maximum foil width – 800 mm
Operating pressure – 6 bar
Air consumption max. – 60 Nl/cycle
Capacity of top heater – 31,5 kW
Capacity of bottom heater – 31,5 kW
Suction capacity of vacuum pump – 160m3/h
Operating voltage – 3 x 400V + N + PE, 50Hz
Total connected load – 125 – 140 kVA
Maximal capacity ( no load operation ) – 50 cycles/min.
Weight approx. – 10.000 kg
Dimensions – 11.000 x 2.500 x 3.300 mm
