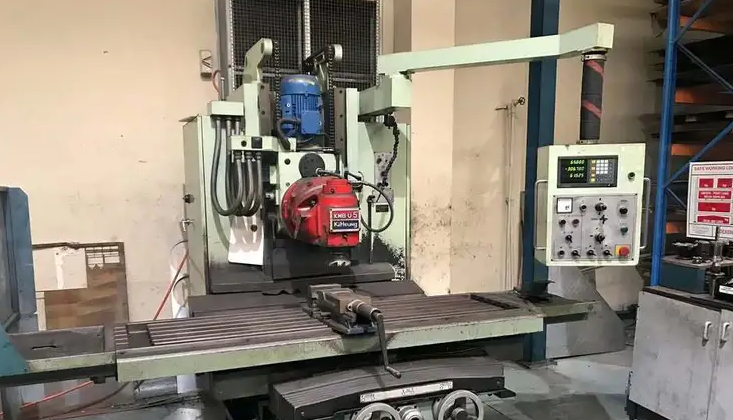

Kiheung KMB-U5 1720 rpm

Table size: 2000 x 530 mm
Maximum table load: 2000 kg
Number of axes: 3
X-axis travel: 1400 mm
Y-axis travel: 600 mm
Z-axis travel: 650 mm
Height from table to vertical spindle nose: 40 – 690 mm
Height from table to horizontal spindle nose: 50 – 700 mm
Spindle taper: ISO 50
Spindle speed range: 40 – 1720 rpm
Number of spindle speeds: 12
Spindle motor power: 7.5 kW
Rapid feed X/Y: 5000 mm/min
Rapid feed Z: 2500 mm/min
Feed rate X/Y: 2000 mm/min
Feed rate Z: 1000 mm/min
Power: 10.1 hp
Maximum RPM: 1600 rpm
Machine weight: approx. 7000 kg
Floor space: 4660 x 2525 x 2700 mm
Coolant pump motor: 0.1 kW
Hydraulic tool clamping motor: 0.75 kW
Huron type swivel head
Low head for angle milling
Vertical and horizontal machining capability
Operation and maintenance manual included
Tooling included
One owner from new
Very good condition
