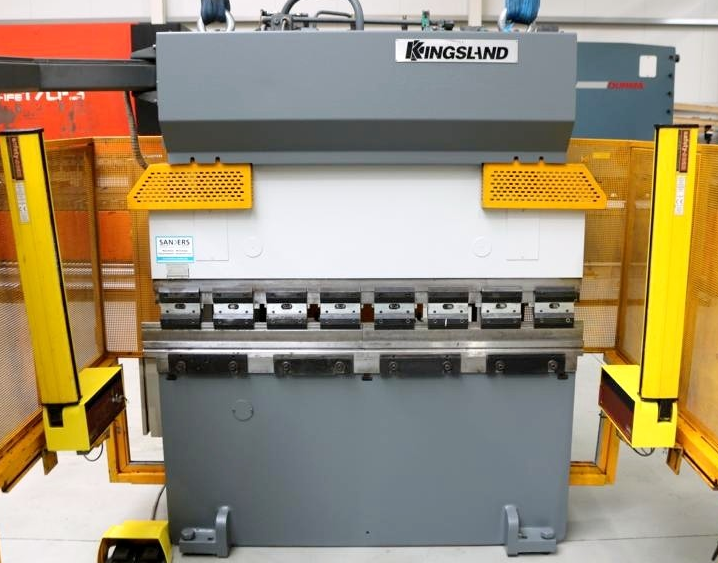

Kingsland KPT 1640 40 t
Ref :
2781461-3-AW
Condition :
Used
Manufacturer :
Kingsland
Model :
KPT 1640
Pressure :
40 t
Year(s) :
2000
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force: 40 t
Bending length: 1600 mm
Distance between columns: 1100 mm
Stroke of upper beam: 100 mm
Throat depth: 195 mm
Working feed: 10.0 mm/sec
Return speed: 70.0 mm/sec
Hydraulic pressure: 180 bar
Maximum working height: 840 mm
Table width: 110 mm
Daylight: 295 mm
Control: ATL 550
Total power requirement: 5.5 kW
Machine weight: 2500 kg
Machine dimensions: 2100 x 1200 x 1800 mm
NC-controlled hydraulic press brake
Torsion shaft
Electro-motorized backgauge
2 stop fingers manually adjustable
Tool holder system A with top wedge crowning
Split insert bending tools
Lateral safety guards
Rear safety guard
Freely movable double foot switch
Operating instructions PDF
