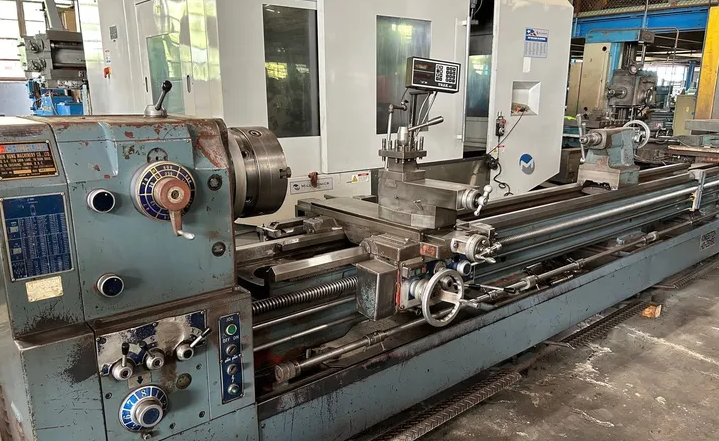

Kingston Engine Lathe 1200 RPM HD-26160 Gap Bed Engine Lathe

Swing Over Bed: 26"
Swing Over Cross Slide: 17-1/2"
Swing in Removable Gap: 35-1/8"
Spindle Nose: D1-11" Camlock
Hole Through Spindle: 4-1/16"
Distance Between Centers: 160"
Spindle Speed Range (12 steps): 13 – 1200 RPM
Longitudinal Feed Range: 0.0012" – 0.039" IPR
Cross Feed: Half of Longitudinal Setting
English Threading Range: 1 – 42 TPI
Metric Threading Range: 0.2 – 14 mm
Tailstock Spindle Diameter: 2-15/16"
Tailstock Spindle Travel: 7"
Tailstock Spindle Taper: #5MT
Approximate Floor Space: 55"W x 217"L
Approximate Weight: 8,500 lbs

Features/Options/Equipment:
TRAK Two-Axis Digital Readout
Taper Turning Attachment
4-Jaw Chuck
3-Jaw Chuck
16" Capacity Roller Type Steady Rest
10" Capacity Roller Type Steady Rest
Four-Way Toolpost
3/4" Capacity Drill Chuck
Thread Dial Indicator
Two-Speed Tailstock
Coolant System with Removable Chip Pans
Foot Brake
Rapid Traverse
Hardened & Ground Bedways
10 HP Main Drive Motor
