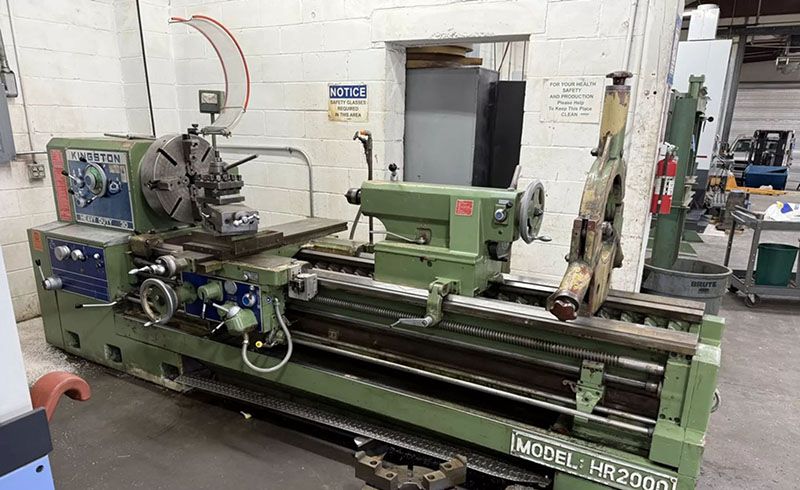

Kingston Engine Lathe 800 RPM (16 steps) HR2000

Swing Over Bed: 34"
Swing Over Cross Slide: 20.75"
Swing in Gap: 40.125"
Distance Between Centers: 80"
Bed Width: 22"
Spindle Nose: D1-11
Spindle Bore: 4.0625"
Spindle Speed Range: 8 – 800 RPM (16 steps)
Longitudinal Feed Range: 0.0024 – 0.0337 IPR (40 steps)
Cross Feed: Half of longitudinal feed
Threads (Inch): 2 – 28 TPI (40 ranges)
Threads (Metric): 1 – 14 mm (31 ranges)
Tailstock Spindle Diameter: 3.9375"
Tailstock Spindle Travel: 11.75"
Tailstock Spindle Taper: #6 MT
Main Motor Power: 20 hp
Approx. Weight: 12,450 lb
Chuck Size: 21" 4-jaw chuck, 15" 3-jaw chuck
Steady Rest Capacity: 14" roller type
Toolpost: Four-way turret toolpost
Carriage Stop: Micrometer carriage stop
Threading Indicator: Included
Live Center: Included
Coolant System: Included
Foot Brake: Included
Rapid Traverse: Included
Tailstock: Two-speed
Threading: Inch & metric capability
Condition: Used (1985)
