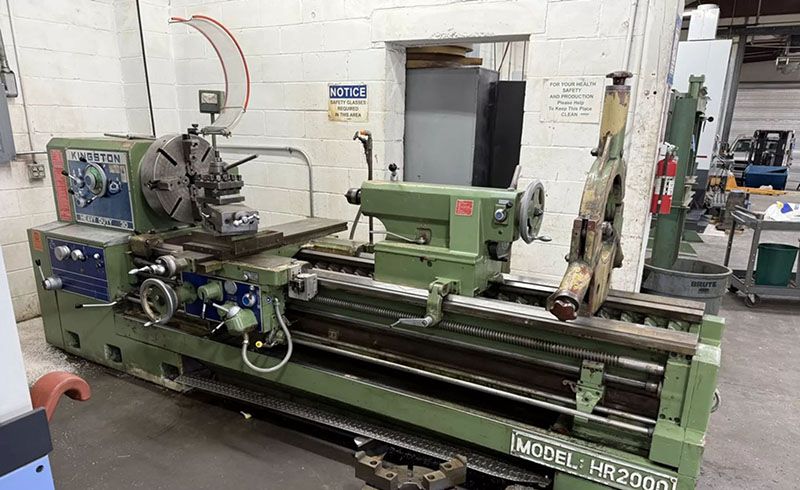

Kingston Engine Lathe 800 RPM 30" HR2000

Swing over bed: 34"
Swing over cross slide: 20-3/4"
Swing in removable gap: 40-1/8"
Distance between centers: 80"
Width of bed: 22"
Spindle nose: D1-11
Hole through spindle: 4-1/16"
Spindle speed range: 8 – 800 RPM
Spindle speed steps: 16
Longitudinal feed range: .0024" – .0337" IPR
Cross feeds: half of longitudinal
English threading range: 2 – 28 TPI
Metric threading range: 1 – 14 mm
Tailstock spindle diameter: 3-15/16"
Tailstock spindle travel: 11-3/4"
Tailstock spindle taper: #6MT
Main drive motor: 20 HP
Machine weight: 12,450 lbs
Inch threading capability
Metric threading capability
21" 4-jaw chuck
15" 3-jaw chuck
14" capacity roller type steady rest
Four-way turret toolpost
Micrometer carriage stop
Thread dial indicator
Live center
Coolant system
Foot brake
Rapid traverse
Two-speed tailstock
