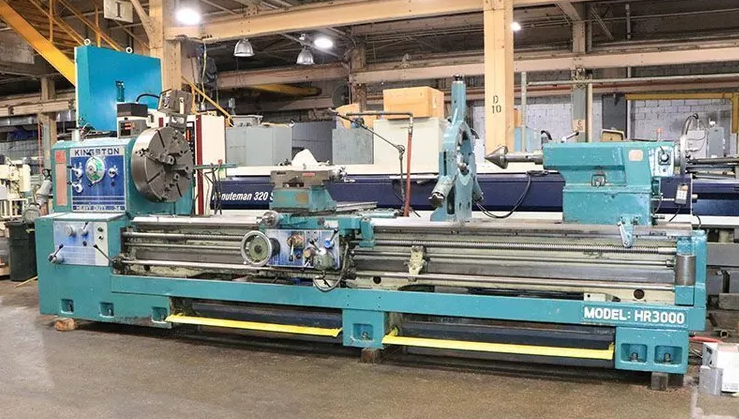

Kingston Engine Lathe 800 RPM HR 3000

Swing over bed: 34″
Swing over cross slide: 24-3/4″
Swing in removable gap: 44-1/4″
Spindle nose: D1-11″ camlock
Hole through spindle: 4-1/16″
Distance between centers: 120″
Spindle speed range (16): 8 – 800 RPM
Longitudinal feed range (40): .0024″ – .0337″ IPR
Cross feeds: Half of longitudinal setting
English threading range (40): 2 – 28 TPI
Metric threading range (31): 1 – 14 mm
Tailstock spindle diameter: 5-1/8″
Tailstock spindle travel: 11-3/4″
Tailstock spindle taper: #6MT
Approx. floor space: 55″ W × 200″ L
Approx. weight: 12,500 lbs
Heidenhain 2-axis digital readout
24″ Cushman 4-jaw chuck
13″ roller-type steady rest
Rapid traverse
Headstock center sleeve
Two-speed tailstock
Coolant system with removable chip pans
20 HP main drive motor
Inch & metric threading capability
