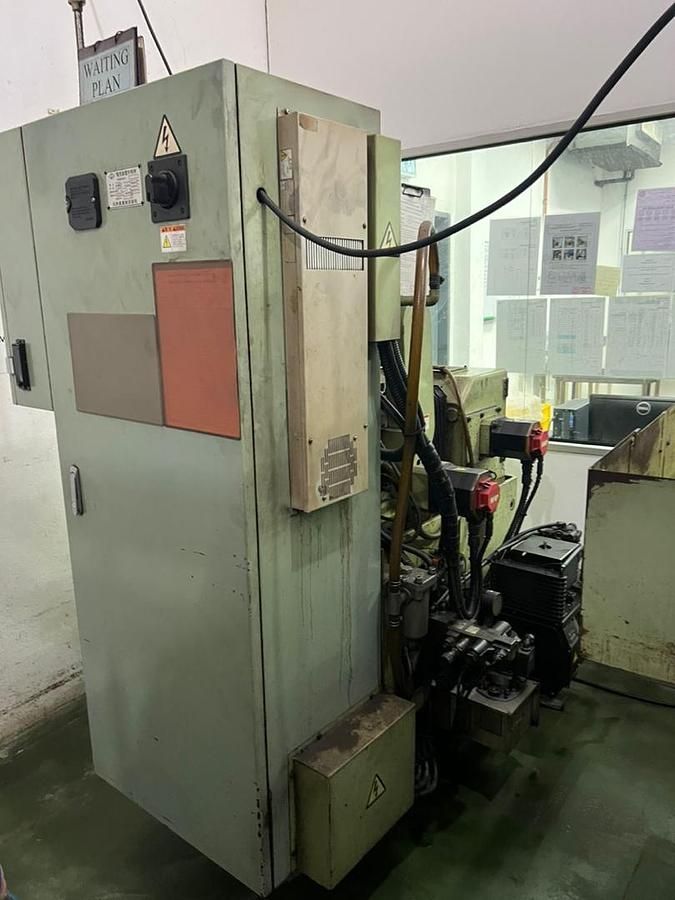

KITAI SANGYO HI-PRO 5ALL 2000 min⁻¹ Gear Hobbing Machine

Control Fanuc Oi Mate-TD
Max gear diameter 50 mm
Permissible work length 200 mm
Number of teeth 3–50
Distance work spindle center to hob spindle center 10–70 mm
Distance work spindle surface to hob spindle center 120–270 mm
Work spindle diameter 60 mm
Center bore diameter 28 mm
Spindle speeds 300–2000 min⁻¹
Max hob size 42 × 43 mm
Hob head swivel angle -45° to +45°
Hob shift travel 30 mm
Radial feed speed 0.5–500 mm/min
Radial feed rapid traverse 4000 mm/min
Cross slide travel (axial feed) 150 mm
Axial feed speed 0.5–500 mm/min
Axial feed rapid traverse 1200 mm/min
Tailstock travel 120 mm
Tailstock center stroke max 80 mm
Tailstock spindle pressure 36–150 kgf
Main motor 2.2 kW-4P
Hydraulic pump motor 0.75 kW-4P
Coolant pump motor 0.18 kW-2P
Lubricant pump motor 0.05 kW-4P
Height 1650 mm
Floor space 1430 × 1386 mm
Net weight 1500 kg
