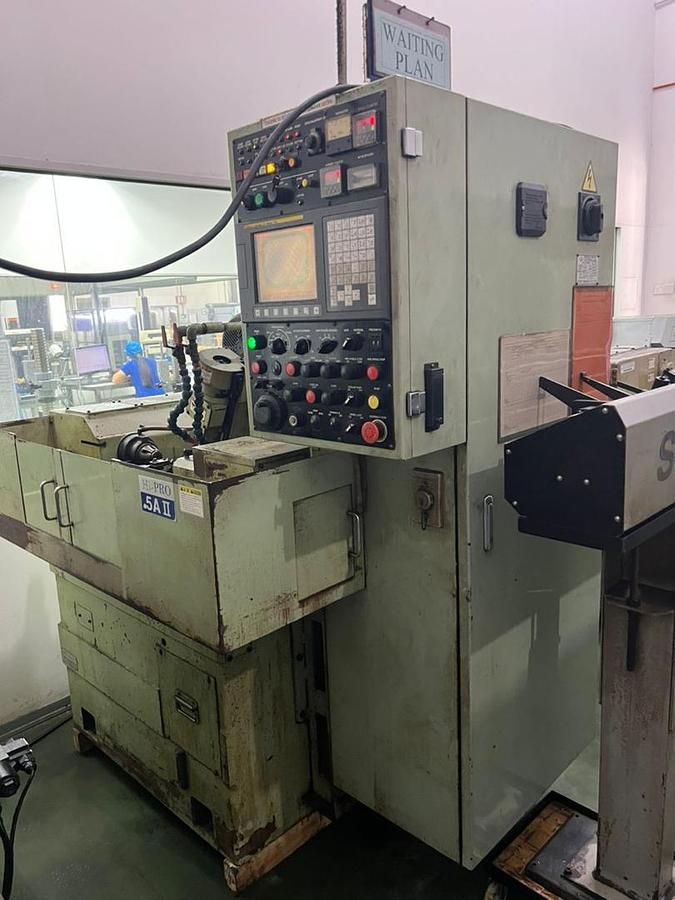

KITAI SANGYO HI-PRO 5ALL Variable Speed Gear Hobbing Machine

Control Fanuc Oi Mate-TD
Max gear diameter 50 mm
Permissible work length 200 mm
Number of teeth 3–50
Work spindle diameter 60 mm
Center bore diameter 28 mm
Spindle speeds 300–2000 min⁻¹
Hob head swivel angle -45° to +45°
Hob shift travel 30 mm
Radial feed speed 0.5–500 mm/min
Radial feed rapid traverse 4000 mm/min
Axial feed speed 0.5–500 mm/min
Axial feed rapid traverse 1200 mm/min
Tailstock travel 120 mm
Tailstock center stroke max 80 mm
Tailstock spindle pressure 36–150 kgf
Main motor 2.2 kW-4P
Hydraulic pump motor 0.75 kW-4P
Coolant pump motor 0.18 kW-2P
Lubricant pump motor 0.05 kW-4P
Height 1650 mm
Floor space 1430 × 1386 mm
Net weight 1500 kg
