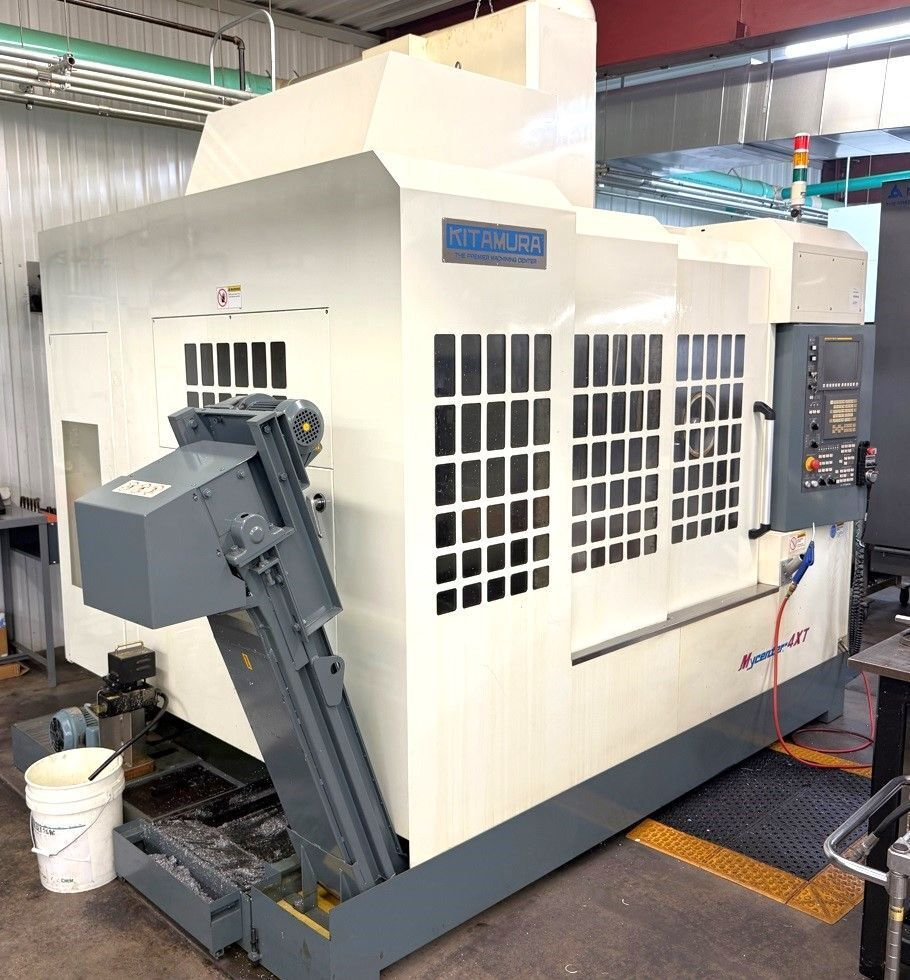

Kitamura MYCENTER-4XT 5 Axis

TABLE LENGTH .................... 23.6"
TABLE WIDTH ..................... 14.3"
X-AXIS TRAVEL ................... 31.5"
Y-AXIS TRAVEL ................... 24"
Z-AXIS TRAVEL ................... 20"
A-AXIS ROTATION ................. -42/+120
C-AXIS ROTATION ................. 360
SPINDLE SPEED ................... 15,000 RPM
SPINDLE MOTOR ................... 35 hp
SPINDLE TAPER ................... CAT 40 (BIG PLUS)
TOOL CAPACITY (ATC) ............. 30
RAPID TRAVERSE - X AXIS ......... 1,417 in/min.
RAPID TRAVERSE - Z-AXIS ......... 1,417 in/min.
ROTARY OR TRUNNION .............. Yes
EQUIPPED WITH:
FANUC 0i-MD CONTROL
BUILT-IN 4TH/5TH AXIS TRUNNION TABLE
4 AXES SIMULTANEOUS CONTROL (4 + 1)
HIGH-PRESSURE THROUGH-SPINDLE COOLANT (220 PSI)
15,000 RPM SPINDLE
CHIP CONVEYOR
SPINDLE CHILLER
BOX WAY (4 BOX WAYS ON Y-AXIS)
