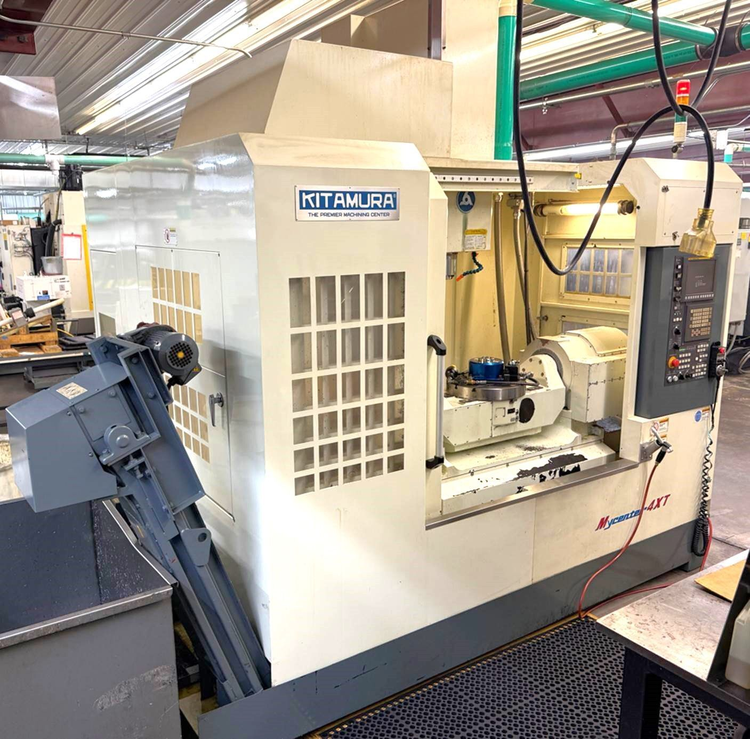

Kitamura MYCENTER 4XT Universal Trunnion Table 4 Axis

X-axis travel 31.5″
Y-axis travel 24″
Z-axis travel 20″
A-axis travel -42° to +110°
C-axis travel 360°
Rapid traverse (X, Y, Z) 1417 ipm
Control Fanuc 0i-MD CNC Control
Built-in 4th/5th axes trunnion table
4 axes simultaneous control (4+1)
High-pressure coolant through spindle 220 psi
Chip conveyor
Spindle chiller
Box ways on Y-axis (4 box ways)
Table size 15.75″ (400 mm)
Maximum work size 23.62″ × 14.3″
Spindle speed 15,000 rpm
Spindle taper CAT 40 BIG+
Spindle motor power 35 hp
Automatic tool changer 30 ATC
Approximate floor space 88″W × 119″D × 119″H
Approximate machine weight 17,250 lbs
Renishaw probing system
Cutting hours 7,551
