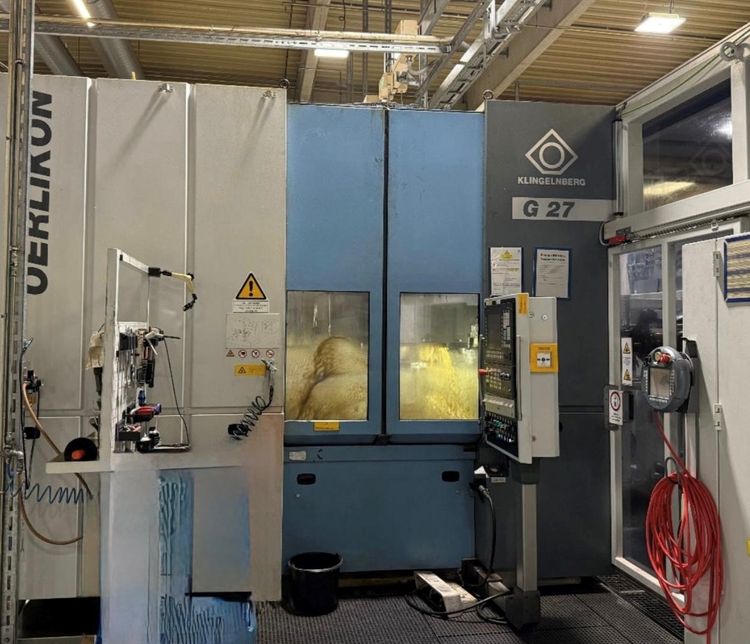

Klingelnberg G27 7500 rpm CNC Bevel Gear Grinding machine
Ref :
2757520-3-AW
Condition :
Used
Manufacturer :
Klingelnberg
Model :
G27
Spindle Speed :
7500 rpm
Short Description :
CNC Bevel Gear Grinding machine
Year(s) :
2011
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Control: Siemens 840D solution line
Max. Gear Diameter: 300 mm
Maximum Module: 8
Minimum Module: 0.7
Min./Max. Pitch Cone Angle: −90 / +90°
Workpiece Spindle Bore: 127 mm
Grinding Wheel Diameter: 50–230 mm
Continuously Variable Spindle Speed: 7500 rpm
Workpiece Spindle Speed: 700 rpm
Total Connected Load: 146 kW
Machine Dimensions: 9.5 × 3.6 × 3.1 m
Machine Weight: 21 t
Integrated Probe in Grinding Head
External Spindle Cooling
ELBARON Integrated Oil Mist Extraction System
HOFFMANN Coolant Filtration System
