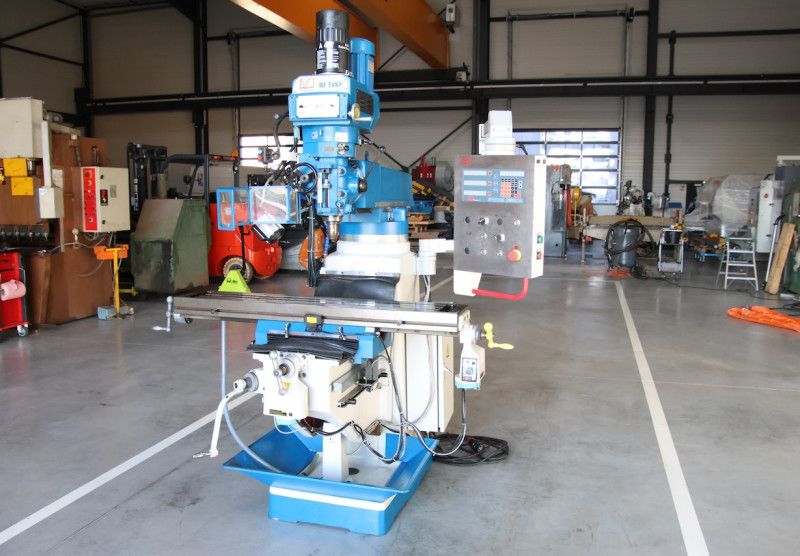

Knuth MF 5 VKP Vertical 3600 rpm

X-axis travel: 800 mm
Y-axis travel: 390 mm
Z-axis travel: 380 mm
Table surface: 1370 x 250 mm
Table load capacity: 350 kg
Sheath feeds (3): 0.04 / 0.08 / 0.15 mm/rev
Spindle speed range: 70 - 3600 rpm
Spindle taper: ISO 40
Quill stroke: 127 mm
Main motor power: 3.75 kW
Supply voltage: 400 V
Machine dimensions: 2540 x 2156 x 2235 mm
Machine weight: 1590 kg

Features
3-axis position indicator
Preloaded ball screws in X and Y
Pneumatic tool clamping
Chip tray
Cooling system
Centralized lubrication
Horizontal guide rail cover
Work tools
User manual
