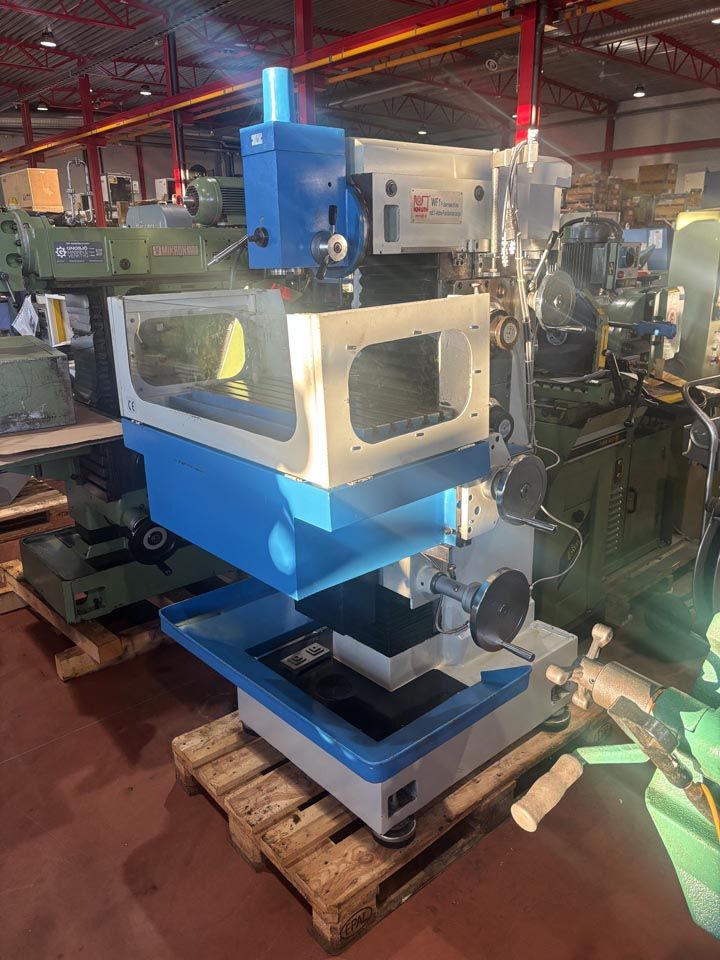

Knuth WF1 Vertical 1660 rpm (8 steps)

Work travel X 350 mm
Work travel Y 200 mm
Work travel Z 350 mm
Table size 700 x 280 mm
Max load at table 120 kg
Rapid feed X/Z 1000 mm/min
Rapid feed Y 285 mm/min
Work feed X/Y/Z 25–285 mm/min
Spindle taper vertical ISO40
Drilling quill stroke 80 mm
Spindle speed vertical 15–1660 rpm (8 steps)
Spindle throat min–max 155–355 mm
Distance spindle nose–table 0–285 mm
Head angle 0–45°
Spindle speed horizontal 110–1230 rpm (8 steps)
Spindle taper horizontal ISO40
Machine size 1.45 x 1.44 x 1.8 m
Weight 1400 kg
