Kochsiek Multiwall paper sack line

Complete Multiwall Paper Sack Line – TUBER Kochsiek SM 61B + TRANSYSTEM + BOTTOMER Kochsiek BL 66 with Palletizer
Tuber Kochsiek SM 61B (3 unwinders - Perforating unit - FLEXO Printing unit with 4 colors - Cross pasting unit for up to 3 plies - Digital lengthwise injectors for 3 plies)
Transystem
Bottomer Kochsiek BL 66 (Automatic rotary feeder - Bottom patch unit each side with printing unit (4 colors) - Double valve unit)
Palletizer

Condition Used
TUBER KOCHSIEK SM 61B (3 unwinders - Perforating unit - FLEXO Printing unit with 4 colors - Cross pasting unit for up to 3 plies - Digital lengthwise injectors for 3 plies)
Material that can be processed Paper
Nr. of plies up to 3 plies
Sack lenght (Min. - Max.) 400 - 1050 mm
Sack width (Min - Max) 220 - 550 mm
Max. paper width 1120 mm
Number of unwinders 3 units
Unwinders Max. reels diameter 1400 mm
Unwinders Inner core diameter 76 mm
Perforation unit Yes / puntual perforation (3 configuration possibility of perforation )
FLEXO PRINTING UNIT Yes, 4 colors flexo
Maximum web width (Flexo) 1450 mm
Maximum print width (Flexo) 1350 mm
TRANSYSTEM Yes

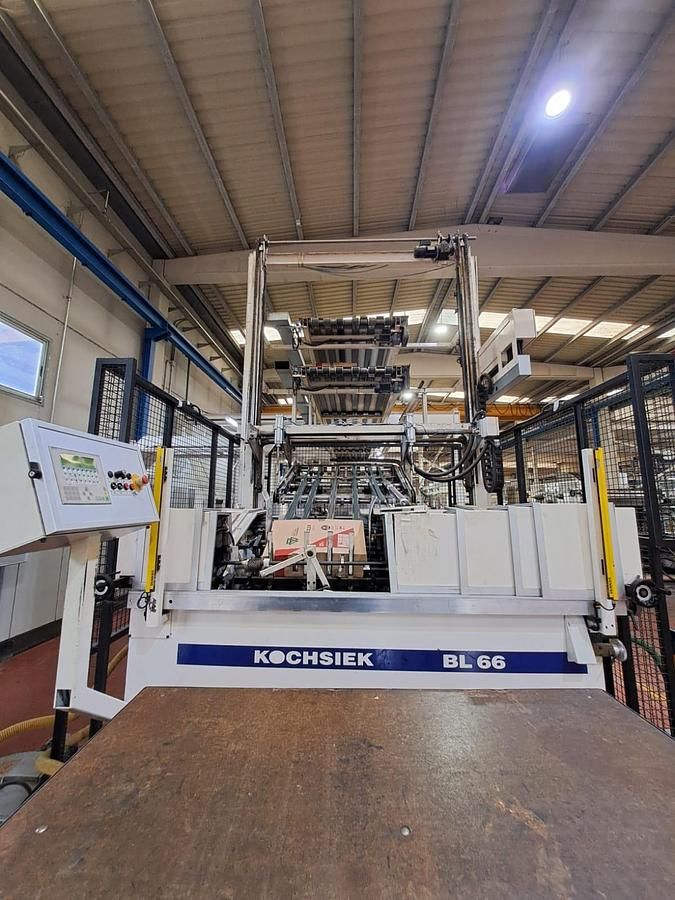

BOTTOMER KOCHSIEK BL 66 (Automatic rotary feeder - Bottom patch unit each side with printing unit (4 colors) - Double valve unit)
Sack lenght (Min. - Max.) Open sacks 290 - 950 mm
Sack width (Min. - Max.) 220 - 550 mm
Bottom width (Min. - Max) 70 - 160 mm
Bottom center distance (Min. - Max.) 220 - 800 mm
PAPER VALVE GROUP:
2 unwinders
Fold length valve (min. - max) : 10 – 50 mm
Max. roll diameter (lower unwinder): 1300 mm
Max. roll diameter (upper unwinder): 800 mm
Inner core diameter: 76 mm

BOTTOM PATCH UNITS:
Width (Min. - Max.): 60 – 200 mm
Max. roll diameter : 1300 mm
inner core diameter: 76 mm
PALLETIZER Yes
