Kochsiek, Rognini Paper Sack line
EUROPE (Western and Northern)

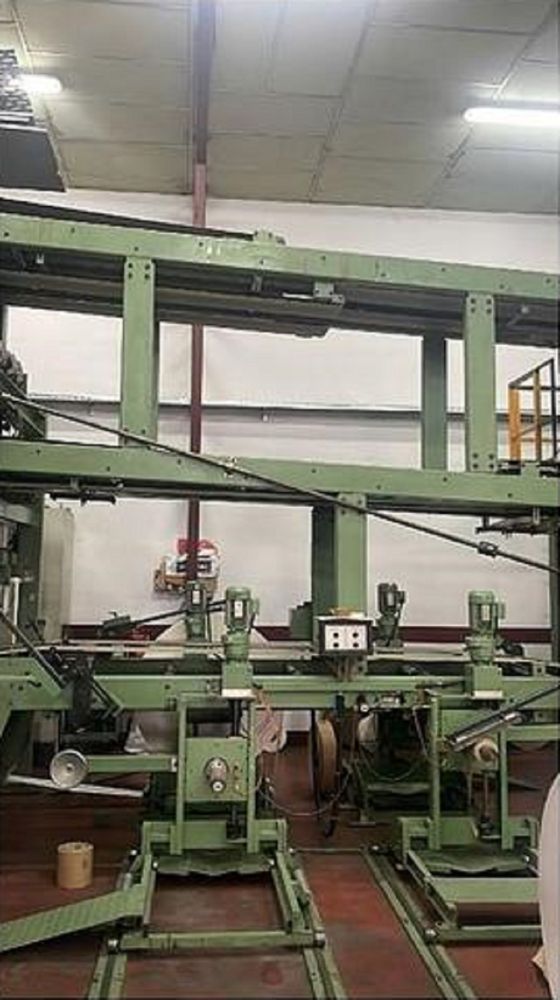

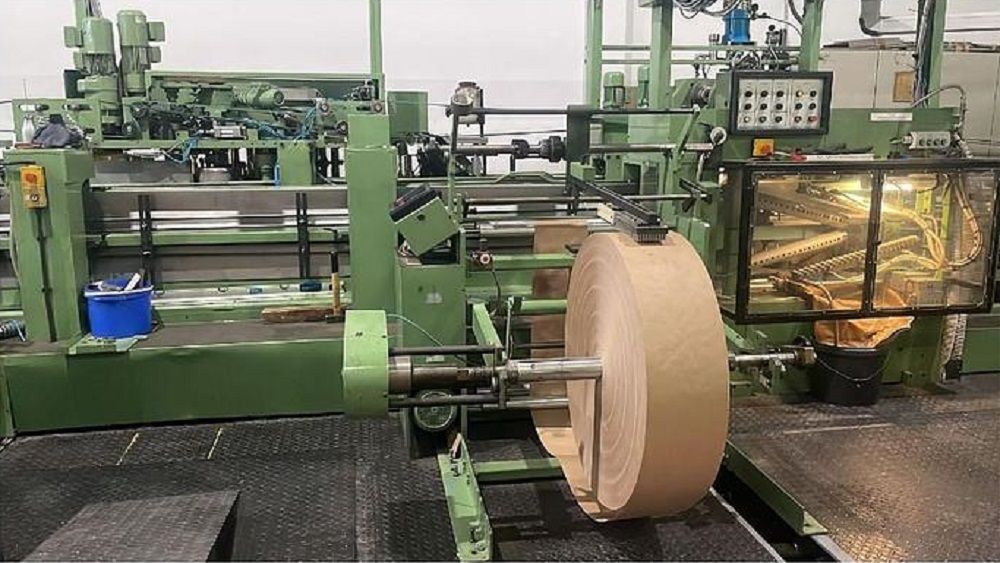

ROGNINI TUBER
Tube width: 30–65
Cutting length: 50-135
Cutting systems: flash cut
Number of plies: x 3
Maximum paper/print widths: 122/117cm
Paper stand diameter: 120
Speed: 80, mechanical 90 depending on the size of the bags, experience of operators etc.
Format gears: 53, 58, 61, 65, 69, 76, 78, 79, 81, 84, 86, 87, 90, 93, 96, 97, 100, 105, 111, 115, 118, 122, 124, 128cm
In line printer: 4 colour
Printing cylinders: 61, 65, 69, 76, 78, 81, 84, 86, 90, 96, 100, 105, 111, 115, 118, 122, 124cm
Cliche thickness: 2.84mm

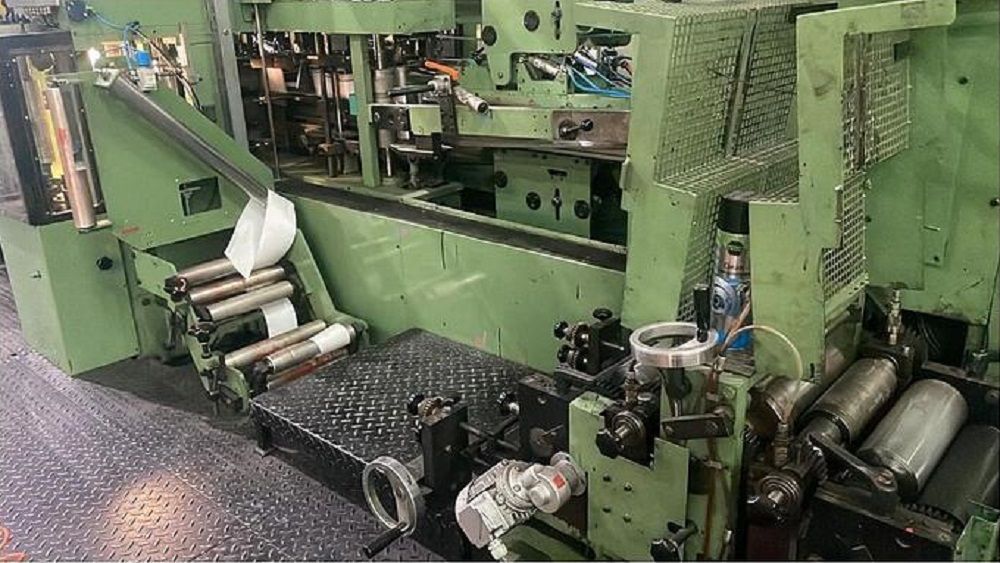

KOCHSIEK BOTTOMER
Sack width: 27–65
Sack length: 32-127
Tube length: 36-138
Bottom width: 7–21.5cm
Bottom centre distance: 24-120
Valve units: 1 + 2
Tubular with PE
Cement and gusset valve
Bottom patch: 2 with overlapping over the edge of the bottom and bottom rotators on both sides
Bottom printing system: 2 x 2 printing cylinders
Fifa system on valve station and bottom patch units
Digital glue system on bottom overlapping and bottom pasting patches

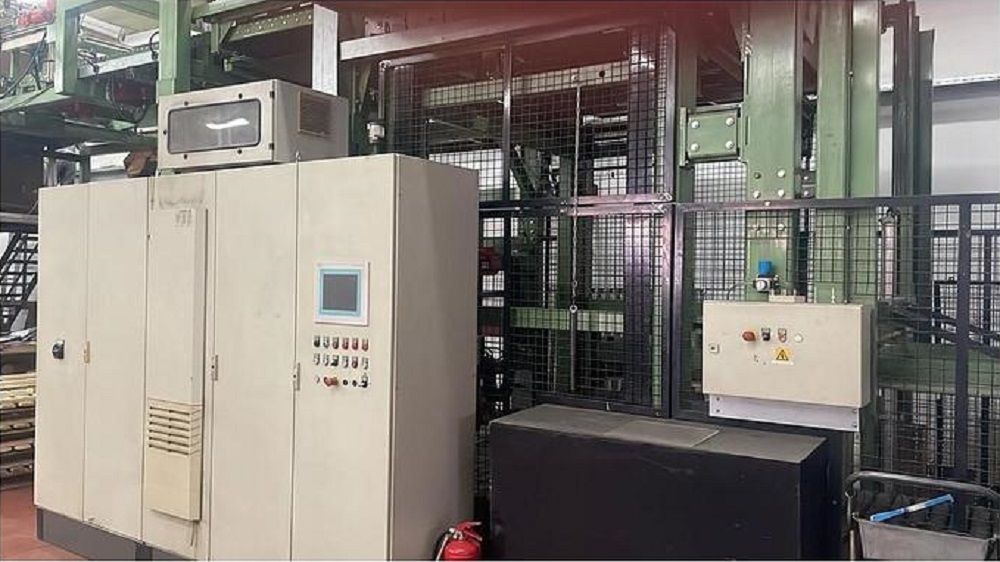

PLC control unit Siemens S5 and S7
Mechanical/production speed: up to 200pcs/min depending on the size of the bags, paper and experience of operators etc.
Vacuum pump: x 2
S Press belt with counting and bundle station

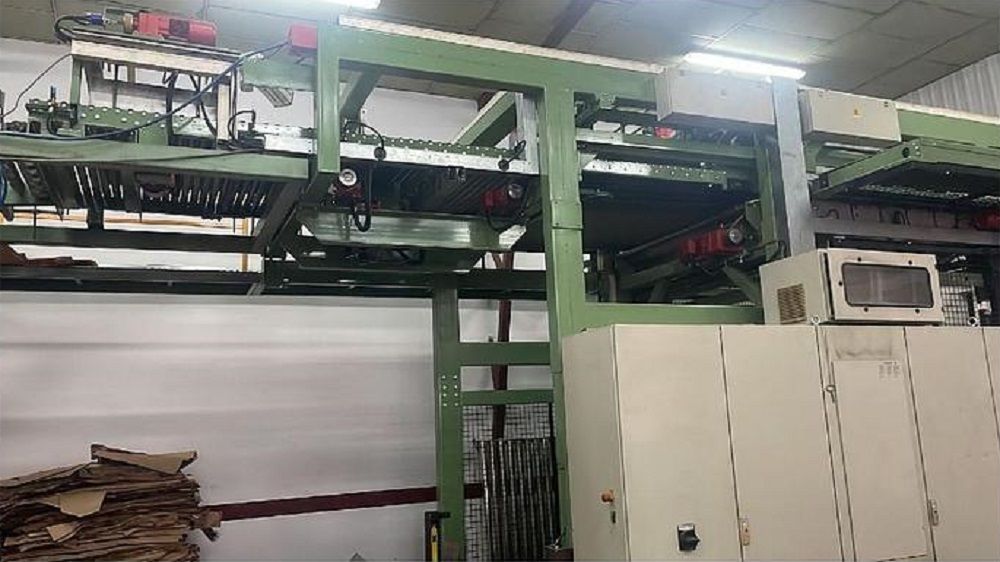

ICOMA PACKTECHNIC
Palletiser Icoma 15 bundle/min
