Nanjing ZD-F450Q

ZNEP ZD-F450Q | Automatic TWISTED & FLAT handles shopping bag making machine (2 handles unit)

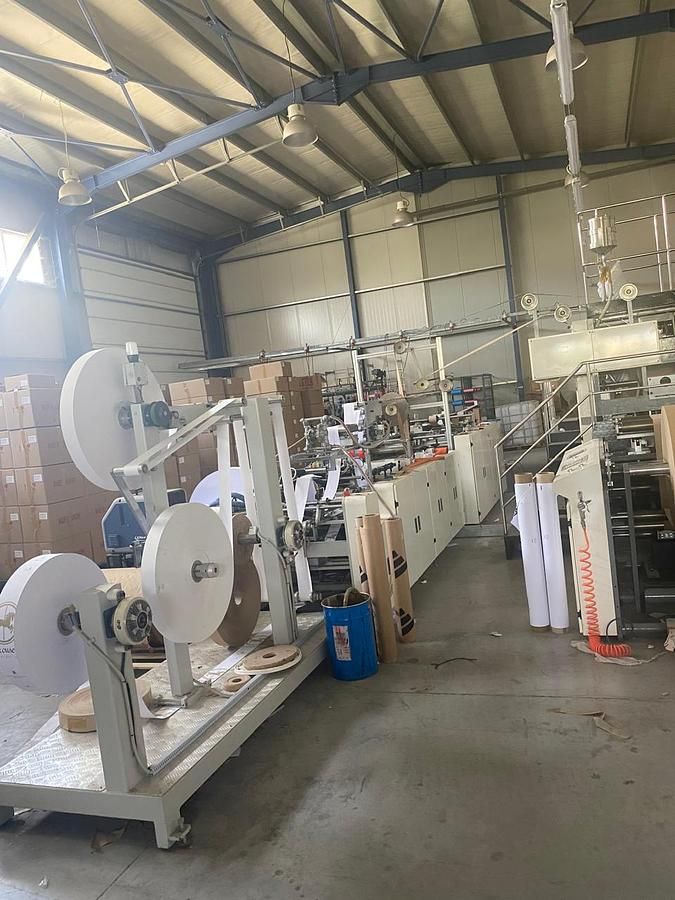

Condition Used (visible in production)
Finished bag width (min - max) 230–450 mm
Paper tube length 290–630 mm (including handle height)
Bag bottom width (min - max) 80–220 mm
Paper roll width (min - max) 650 – 1370 mm
Max. diameter of the reel 1500 mm
Inner core diameter 76 mm
Weight of paper (min - max) 80 / 90–150 g/m²
Handle making unit 2 Hanldes making unit: 1 for TWISTED handles and 1 for FLAT handles

Technical specification of the : TWISTED handle making unit
Handle rope height: 90–120 mm
Handle rope distance: 95 mm
Handle rope diameter: Φ3–6 mm
Handle patch length: 190 mm
Handle patch width: 42.5–50 mm
Paper patch roll diameter: Φ1200 mm
Paper patch roll width: 85–100 mm
Paper patch grammage: 80–150 g/m²

Technical specification of the FLAT handle making unit :
Flat handle height: 100 mm
Flat rope distance: 95 mm
Paper grammage for handle: 100–130 g/m²
Flat rope width: Φ15 mm
Handle patch length: 190 mm
Handle patch width: 42.5–50 mm
Paper patch roll diameter: Φ1200 mm
Paper patch grammage: 100–150 g/m²

Dimensions of the machine 16500 × 5900 × 2500 mm
Total power 33 kW
Machine weight 21.500 kg
Additional information Included new servo motors as spare parts
