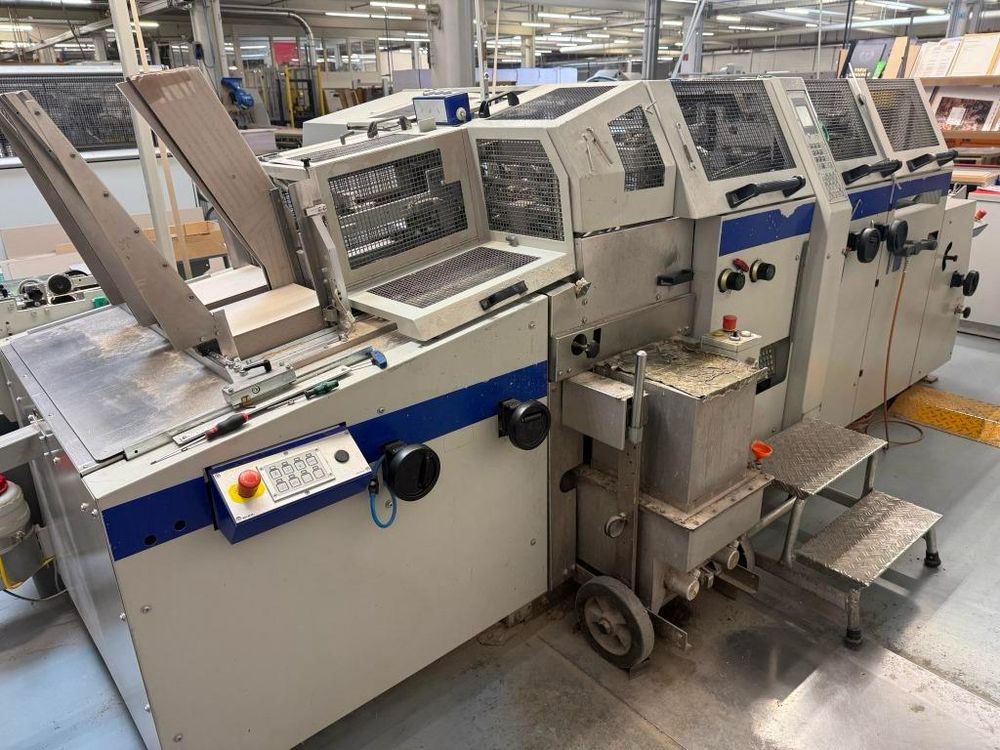

Kolbus DA 260

Standard Equipment:
Copilot System With Touchscreen Monitor
Production Selection
Operator Guided Production Changeovers
Product Counter
Error Display And Operator Guided Troubleshooting.
Manual Board Magazine
Blank Feeder For Intermittent Feeding With Stack Magazine
Maximum Stack Height 350 mm.
Missing Blank Control During Separation
Counting Stack Delivery With Roller Conveyor And Table
Total Length Approx. 3,000 mm
Maximum Stack Height 100 mm.
Extendable Glue Unit For Hot Melt Glue Processing With Glue Preparation In Premelter, Heated Glue Application Roller And Scraper Roller.
Blank Cylinder With Grippers And Exchangeable Matrix Plates
External Glue Application Adjustment
Viscosity Control Unit
Rolling Device For Wrinkle Free Bonding Of Cover Material With Boards And Spine Insert.
Device For Padded Cases Up To Maximum 8 mm Thickness With Padding, Compressed 4 mm.
Automatic Case Counter And Single Case Request For Inspection Purposes On The Operator Side.

Special Equipment:
Device For Processing Roll Spine Material And Spine Waste Shredder.
Format: Opened Case Maximum 670 x 390 mm, Minimum 205 x 140 mm.
Fold Width 4 To 15 mm, Spine Width 14 To 120 mm
Closed Turn In Width 8 To 15 mm
Blank Width 223 To 708 mm
Blank Height 130 To 428 mm
Board Thickness 1 To 4 mm
Board Width 95 To 328 mm
Board Height 140 To 390 mm
Spine Board Thickness 1 To 4 mm
Spine Board Width 6 To 90 mm
Roll Spine Material Thickness 0.3 To 0.6 mm, Width 6 To 90 mm.
Performance: Up To 40 Cycles Per Minute.
