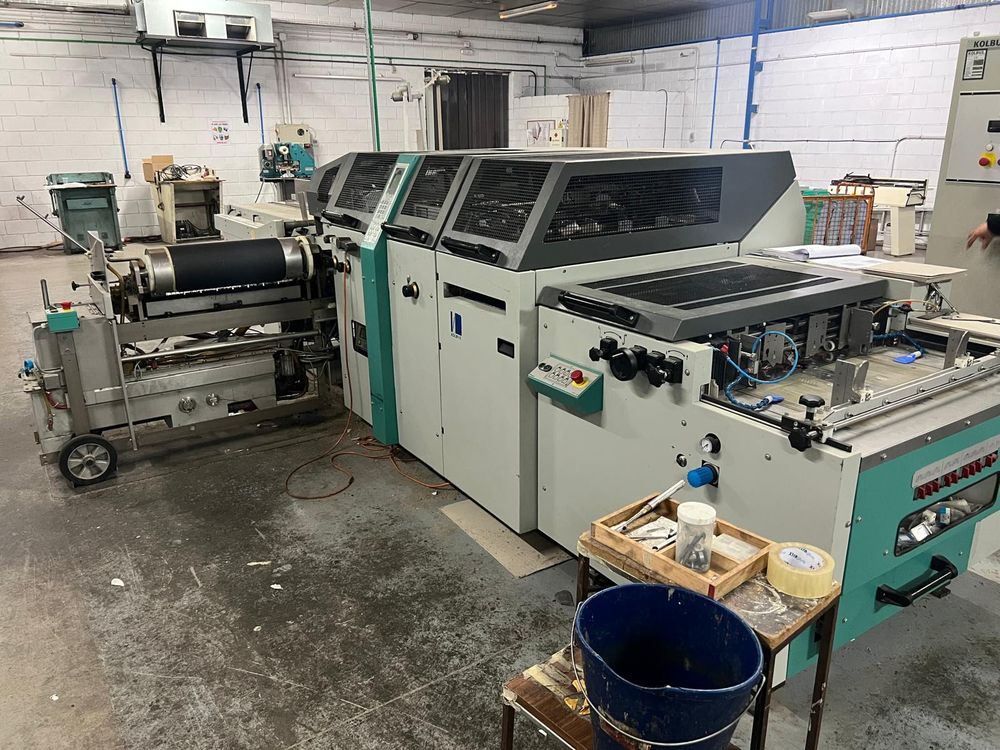

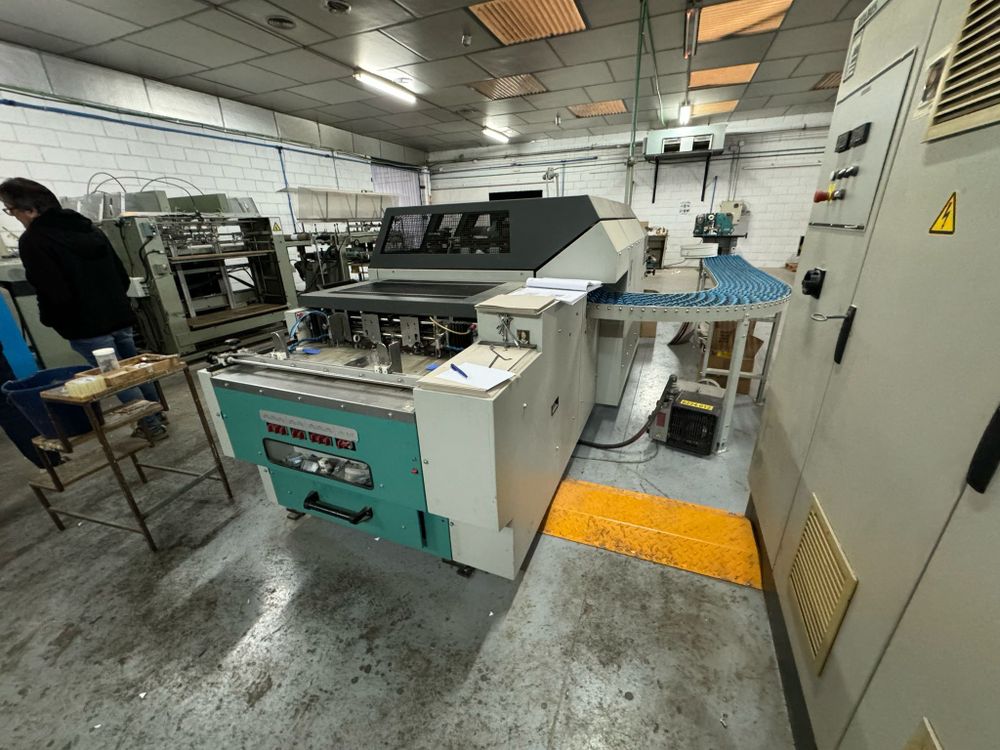

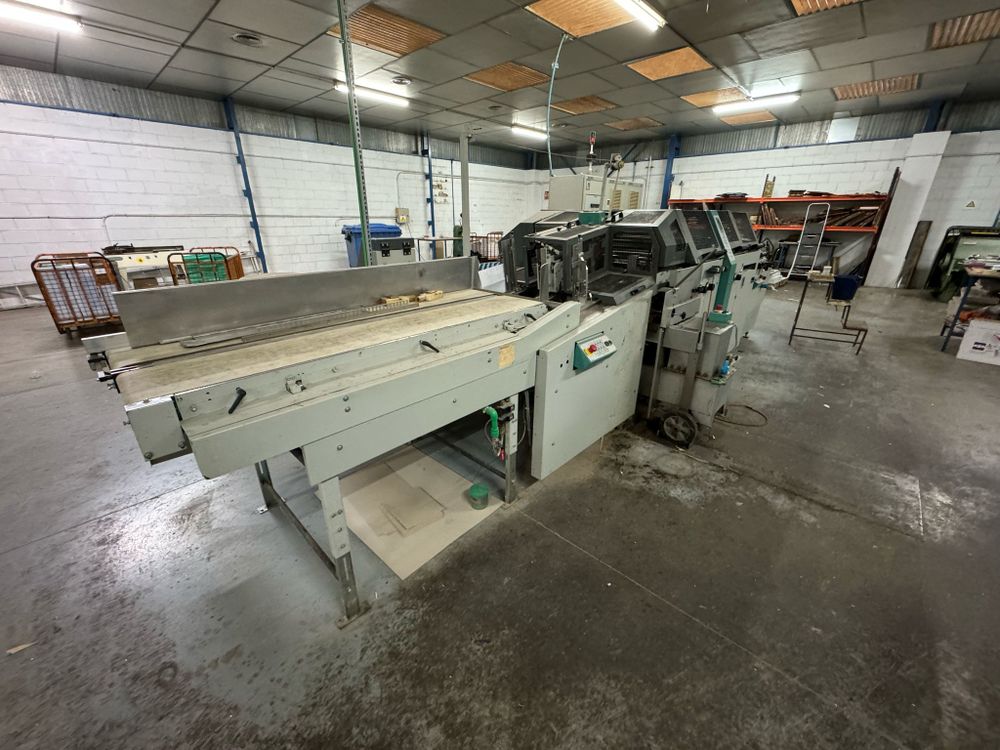

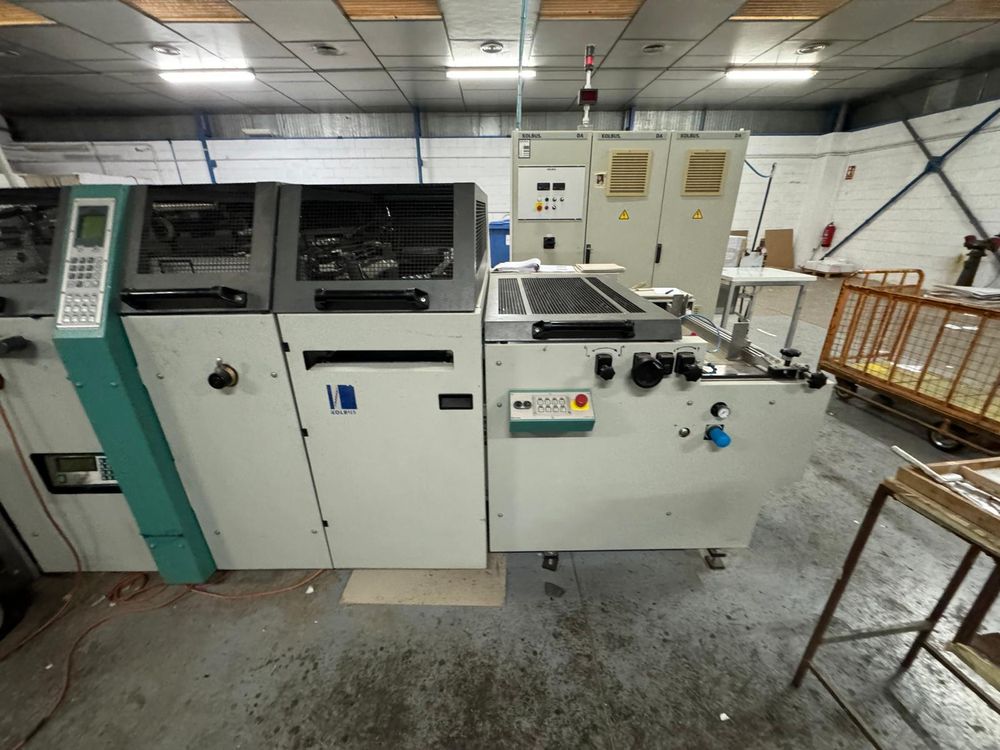

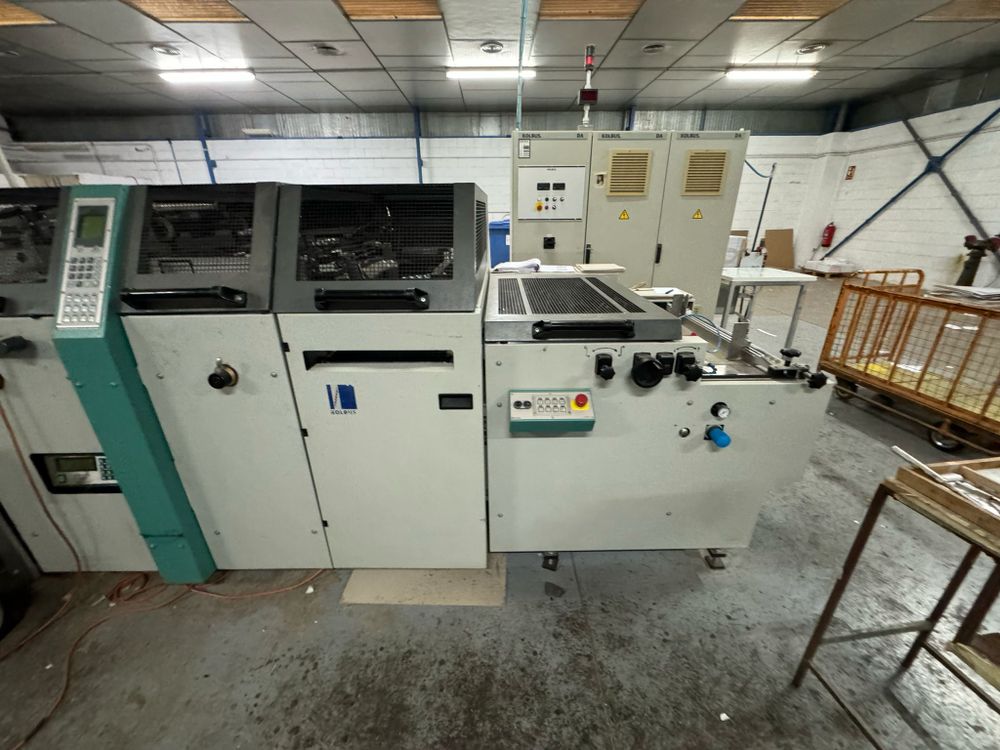

Kolbus DA 270

Casemaker machine
Equipped with:
Production of hardcover books, filing cabinets and table games
Automatic measurement setting system
Carton feeding tape
Automatic cardboard feeder

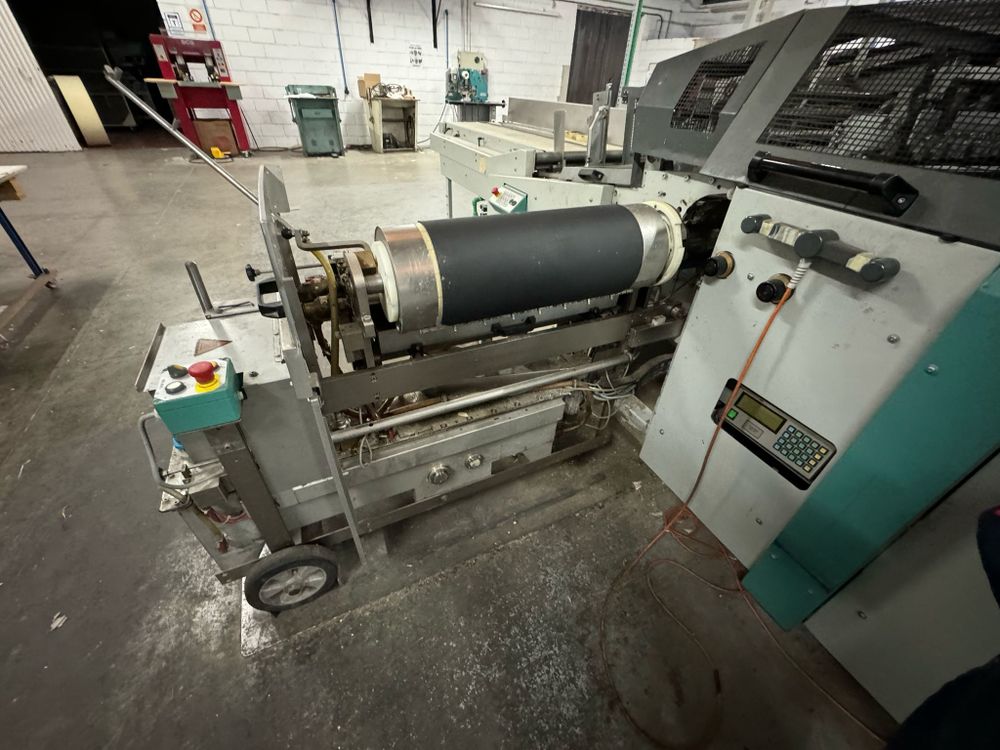

Double roll holder with automatic feeding and cutting to make covers with round loin
Liner feeder
Gluing unit with pre-heated gelatin tank
Check the viscosity of the glue with viscometer and pump for water control
Roller press

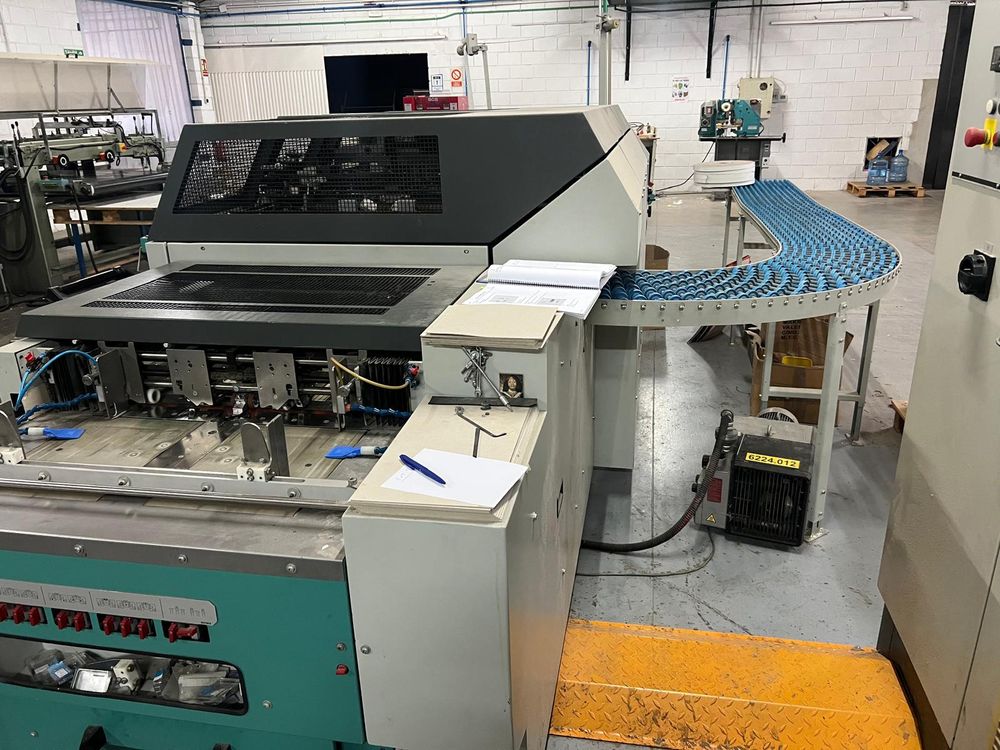

Roll tape output with counter. Exit to the right with possibility to left

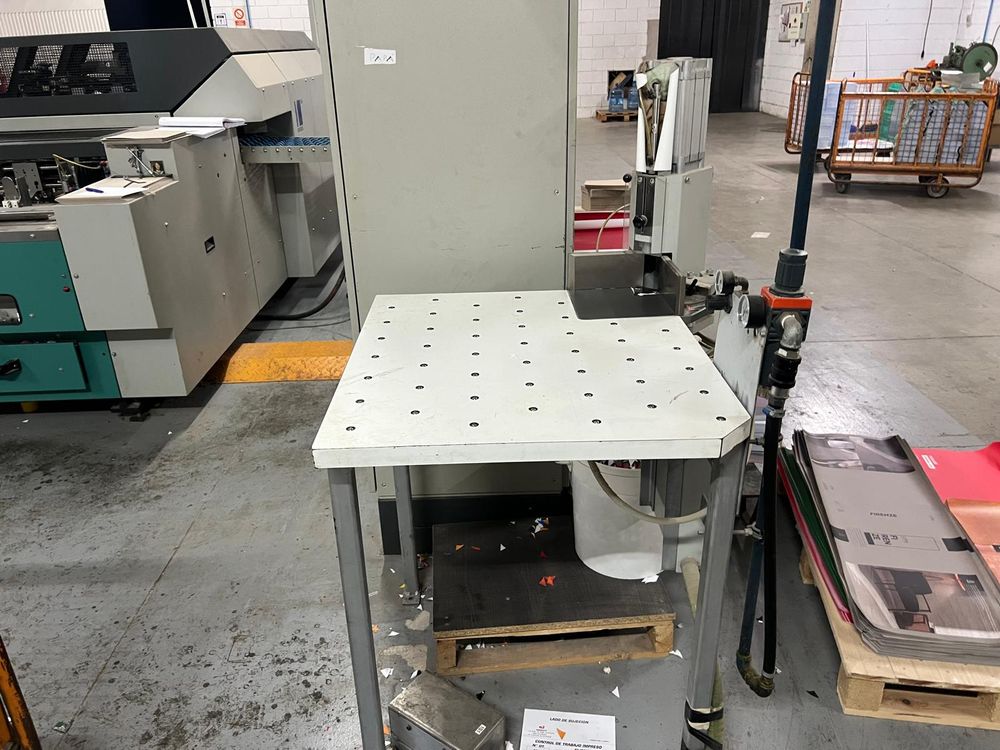

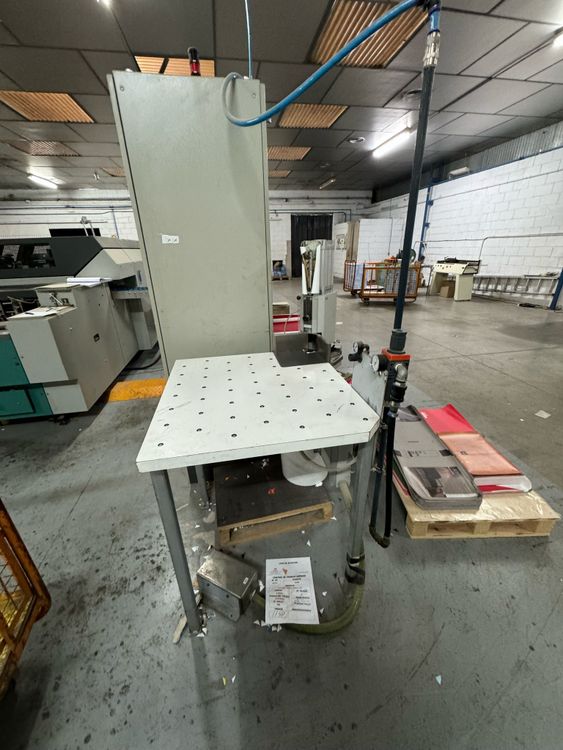

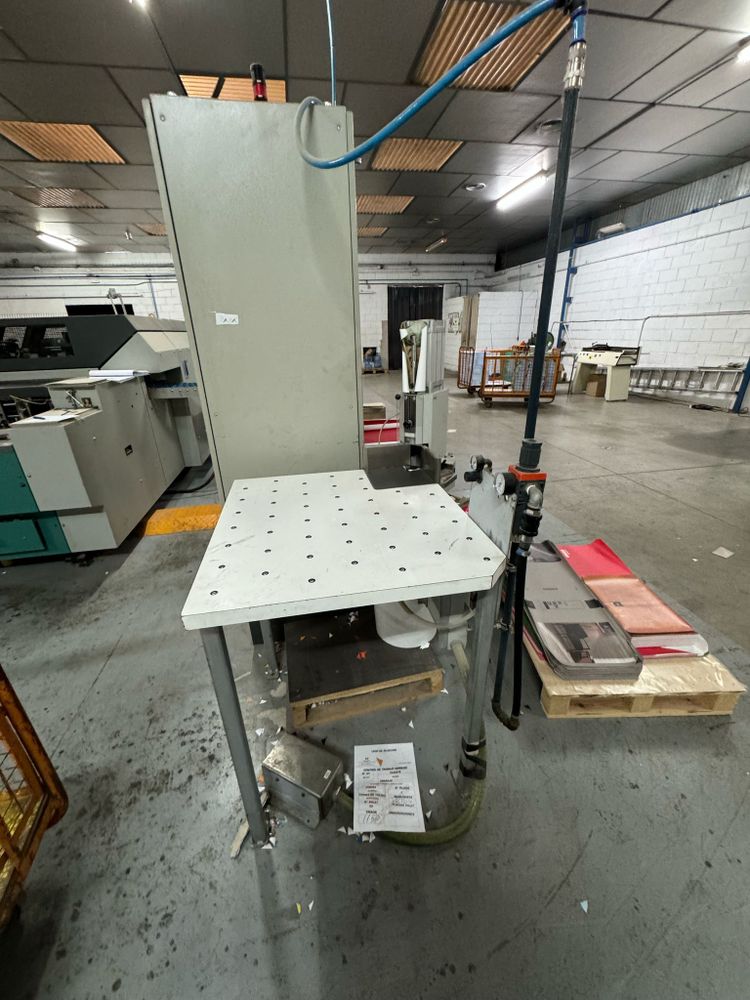

CORNER CUTTING KOLBUS ECK 100 (2007)

Technical specifications:
Size range opened case (min) 205 x 140 mm
Size range opened case (max) 670 x 390 mm
Join width: 4 - 15 mm
Width between boards: 14 - 120 mm
Turn width, closed 8 - 15 mm
Cloth with: 223 - 708 mm
Cloth height: 130 - 428 mm

Boards:
Thickness: 1 - 4mm
Width: 95 - 328 mm
Height: 140 - 390 mm
