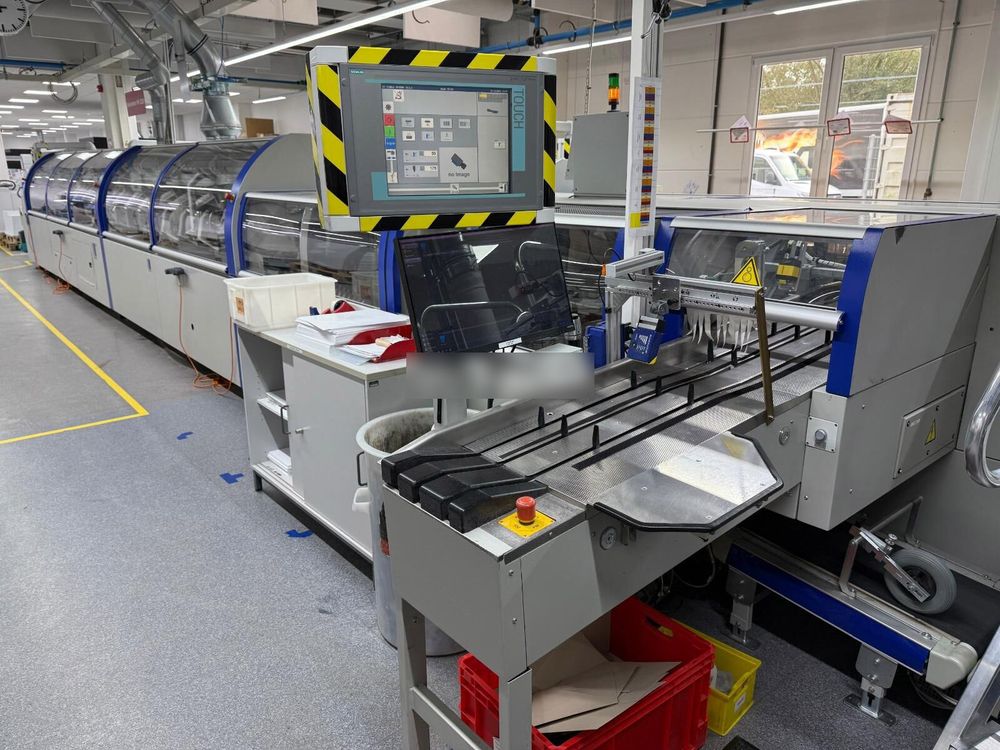

Kolbus KM 200

Perfect Binder
Infeed with hand feeding station
End sheet inserter unit
26 clamps
3 spine preparation units: milling, roughening, notching
Hotmelt nozzle spine gluing unit
Nordson smelting unit (premelter) for spine glue supply — Hotmelt (EVA)
Hotmelt nozzle side gluing unit
Premelter for side gluing unit — Hotmelt (EVA)
Lining station (Gauzing station)
IR heating at curve
Rotary cover feeder
Scoring station for 4 scores
1st pressing station
2nd pressing station
Gripper carriage delivery
Control: Co-pilot with touch screen

Drying Conveyor:
Drying tower
Length: approx. 30 m

Three Knife Trimmer — Kolbus HD 143D
Fully automatic 3D size adjustment
1st cutting cabin: front cut
2nd cutting cabin: side cut (head / foot)
Knife setting gauge
Infeed: right-hand
Control: Co-pilot with touch screen

Stacker — Kolbus (Compensating Stacker)
Compensating stacker
Infeed from three knife trimmer
Max. pile height: 330 mm

Technical Details:
Parameter Value
Perfect binder speed (mechanical, max.) up to 5,000 cycles/h
Perfect binder speed (via star feeder / hand feeding) up to 3,500 cycles/h
Three knife trimmer speed (mechanical) up to 4,200 cuts/h
Stacker speed (mechanical, infeed) up to 18,000 cycles/h
Book block max. format 310 × 380 mm / 12.2" × 15.0"
Book block min. format 140 × 150 mm / 5.5" × 5.9"
Book block max. thickness 60 mm / 2.4"
Book block min. thickness 1.5 mm / 0.06"
Cover max. format 680 × 370 mm / 26.8" × 14.6"
Cover min. format 212 × 150 mm / 8.3" × 5.9"
3KT — trimmed max. format 305 × 375 mm / 12.0" × 14.8"
3KT — trimmed min. format 100 × 120 mm / 3.9" × 4.7"
3KT — untrimmed max. format 320 × 380 mm / 12.6" × 15.0"
3KT — untrimmed min. format 120 × 150 mm / 4.7" × 5.9"
3KT — max. thickness 80 mm / 3.1"
Stacker — max. format 320 × 420 mm / 12.6" × 16.5"
Stacker — min. format 100 × 125 mm / 3.9" × 4.9"
Stacker — max. book thickness 80 mm / 3.1"
Stacker — min. book thickness 2 mm / 0.08"
Electricity 400 V / 3-phase / 50 Hz
