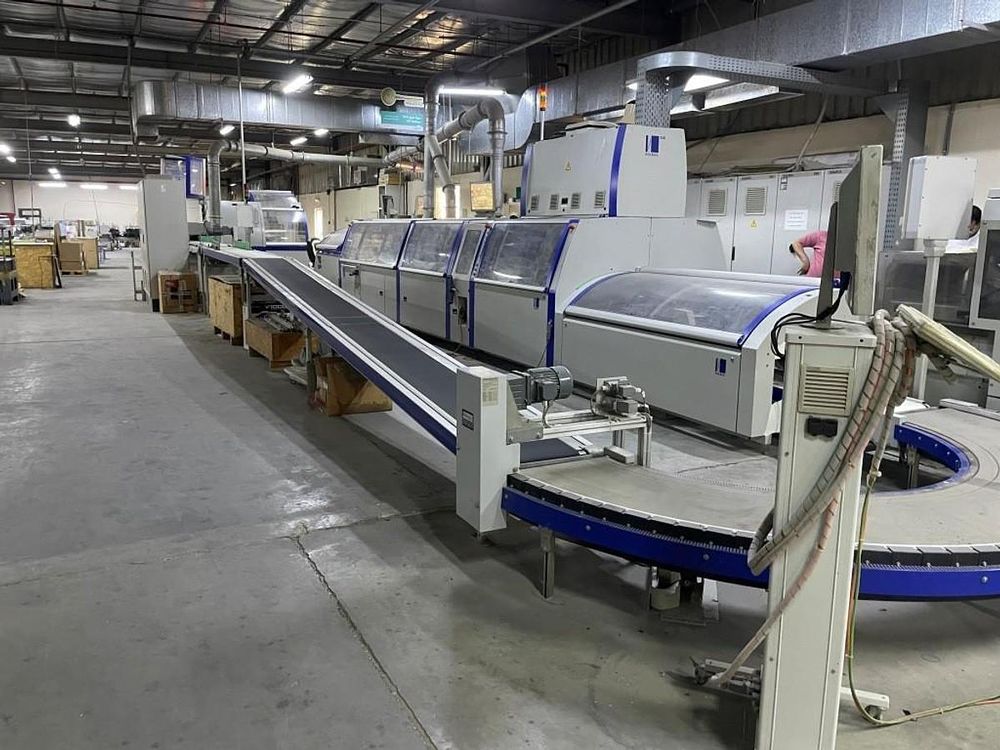

Kolbus KM 600

A Kolbus KM 600 perfect binder is suitable for the production of perfect bound products like brochures, journals, magazines and catalogues.

Overview:
ZU 804 gathering machine
KM 600 perfect binder
transport and drying line
HD 143.P high capacity three knife trimmer

Configuration:
ZU 804 gathering machine
handfeeding station
20 stations basic frame
20 feeders with signature recognition system SignaLynx
reject unit AS 800 to the right
transfer channel with integrated jogging station as connecting unit to the binder
BECKER air center

KM 600 perfect binder
Copilot system with touchscreen monitor
21 clamps
infeed incl. coupling to a ZU gathering machine
main milling station
2 spine preparing units
brushing station
without dust extraction system (machine was connected to a central dust extraction system)
spine gluing station
hotmelt spine gluing unit, interchangeable
premelter LH 375.B
side gluing station
hotmelt side gluing unit, interchangeable
IR heating at curve
rotary cover feeder RA 49.A
double sheet control
scoring station for 4 scores
2 pressing station
straight delivery
lay down device to the left
(counter approx. 12,9 mio. products)

Technical specifications:
mechanical speed: up to 7.000 cycles/h
size range max.: 320 x 383 x 60 mm
size range max.: 190 x 460 x 60 mm
size range min.: 100 x 105 x 3 mm

transport and drying line
length: approx. 20 meters
incl. emergency delivery TS.ZM with roll conveyor TS.RL

HD 143.P high capacity three knife trimmer
Copilot with touch screen monitor
right hand infeed
standard cutting tables (no. 4 - 18)
knife setting gauge
cut counter

Special equipment:
silicon-spraying device
2 set of knives
delivery with roll conveyor TS.RL
control of the transport and drying line
(counter approx. 12,6 mio. products)

Technical specifications:
mechanical speed: up to 4.200 cuts/h
size range cutted max.: 305 x 420 x 80 mm
size range cutted min.: 100 x 100 x 2 mm
size range uncutted max.: 320 x 450 x 80 mm
stack height max.: 80 mm

Option:
SH Side Stitching Unit
The side stitching unit is an additional accessory for the KM 600 perfect binder and can be installed between the spine preparing and gluing unit in the binder.

Technical specifications:
mechanical speed: up to 6.000 cycles/h
