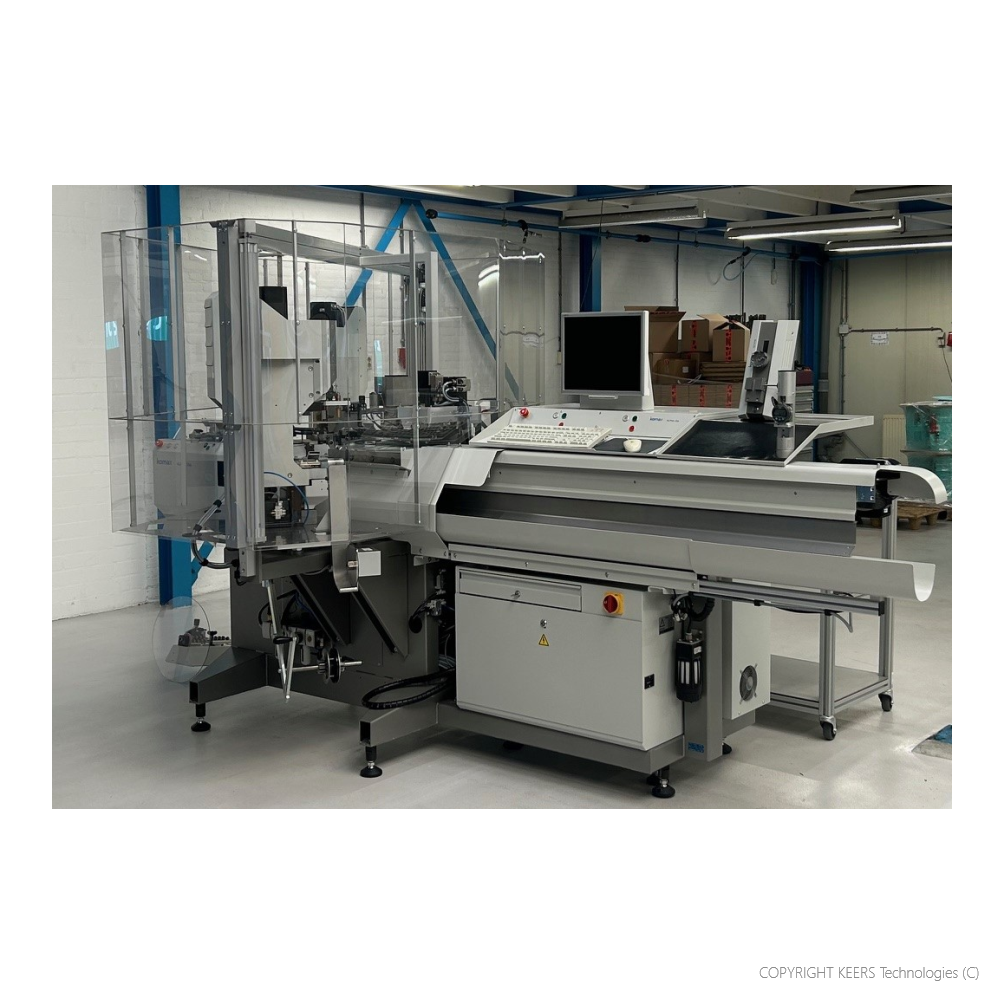

Komax Alpha 356 Automatic crimping machine

Automatic crimping machine
Vintage 2014
7 Proces stations
4 stations at the lead terminal, 3 stations at the trailing end
For cutting, stripping, crimping, seal insertion,
stripping sleeve insertion tinning, twisting etc..
With the following equipment:
Blade holder below and above
Terminal roll holder leftfeed and backfeed for station 2 and 7
PC controller with TopWin operator SW
Real Time multi tasking system
Programmable pivot unit (side 1 and side 2) consisting of two AC servo drives (swiffeling
and pull-off) for stripping, pivoting and for adjusting the wire position to the terminal
Programmable cutting unit with AC servo drive for high resolution cut-in depths
without blades
Belt drive with AC servo motor and integrated Anti slip control System
Transparent protection cover CE-conf. for Komax Alpha 356
Wire deposit base module 2m
2 x mci722 crimp terminal with automatic crimp height 20kN, integrated CFA
up to 20kN crimp Force
automatic crimp adjustment resolution to 0.01mm
integrated crimp force control system
closing height 135,8mm,, setting range +5mm/-3mm
stroke 10-40mm programmable
button for creep, speed on/off, single cycle with operation status light
1 quick clamping system AMP compatible
1 x Tinning/Fluxiing Device ioc 785 Alpha 356 s1, fluxing right
1 x mci 782 twisting module
1 x Inkjet Komax ims 295 MC straigh head (marking with heavily pigmented ink)
min font height 1.3mm
min cable outer diameter 1.4mm
incl accessories: keypay, display, SW etc..
1 x Komax 341 Digital crimp height measuring device
1 x Pull-out force measurment device Q1210
