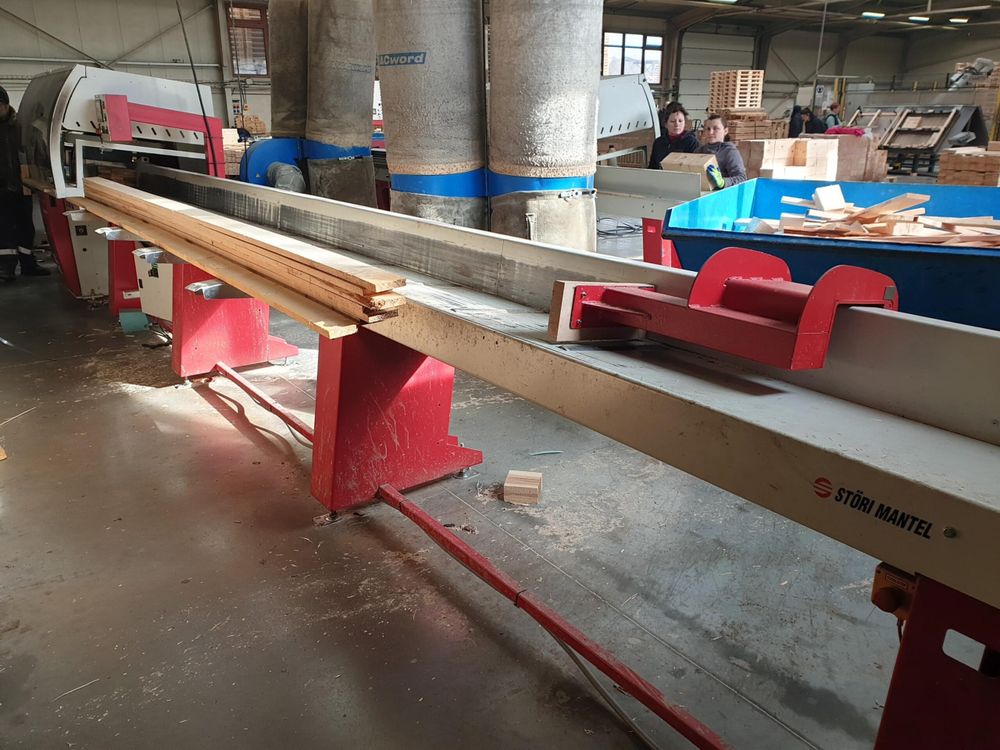

KP 900 AUTOMAT

STÖRI MANTEL Cross-Cut Saw
Motor: 7.5 kW
5 length of lumber input
Saw for shortening
Output conveyor 4m + 2x ejectors + conveyor to the side for removal
The KP 900 AUTOMAT crosscut saw is a suitable solution for preparing prisms and boards in the production of pallets and other wooden packaging products.

Basic device functions:
– Single cut: Manual material movement using two buttons, or setting the length value on the control panel dial.
Starting the cut using the foot pedal. Used for individual cuts.

– Manual mode: Setting one cut value for the entire length of the input material.
Starting the cuts using the foot pedal.
Automatic cutting of the entire material to one set value.
Continuous adjustment of the cutting of the ends according to the operator's requirements.
Return to the preset value of the length of the input material.
Used for the production of cubes.
The advantage is a quick transition between individual values ​​when the input material is frequently changed.

– Automatic mode: Setting the required combination of values ​​for the entire length of the input material to ensure high yield.
Continuous adjustment of the cutting of the ends according to the operator's requirements.
Return to the preset value of the length of the input material.
Number of lengths in the program 10 (possible selection of lengths from the entered data for a given cut),
number of programs 20 (10 programs for cutting lengths in a fixed order, 10 programs for optimizing the cut).
Quick and easy rewriting of programs, high variability.
Used for the production of blanks for a wide range of packaging products.

– Operation: The saw can be operated by one employee, the location of the second is limited by the weight
and amount of material loaded, which the operator must manually place into the machine.

– Capacity of the cross-cutting saw: Production capacity is determined by the cross-sectional dimensions
of the processed material, its length and the manufactured assortments.
For the calculation, data on the maximum feed speed of the feeder up to 90 m/min.
and the speed of one cutting cycle of approximately 2 seconds can be used.
On average, we process 20 - 25 m3 of pallet blanks or 20 to 25 thousand pcs. of cubes for pallet production per shift.
The machine is in GOOD CONDITION, FUNCTIONAL and PLUGGED IN
