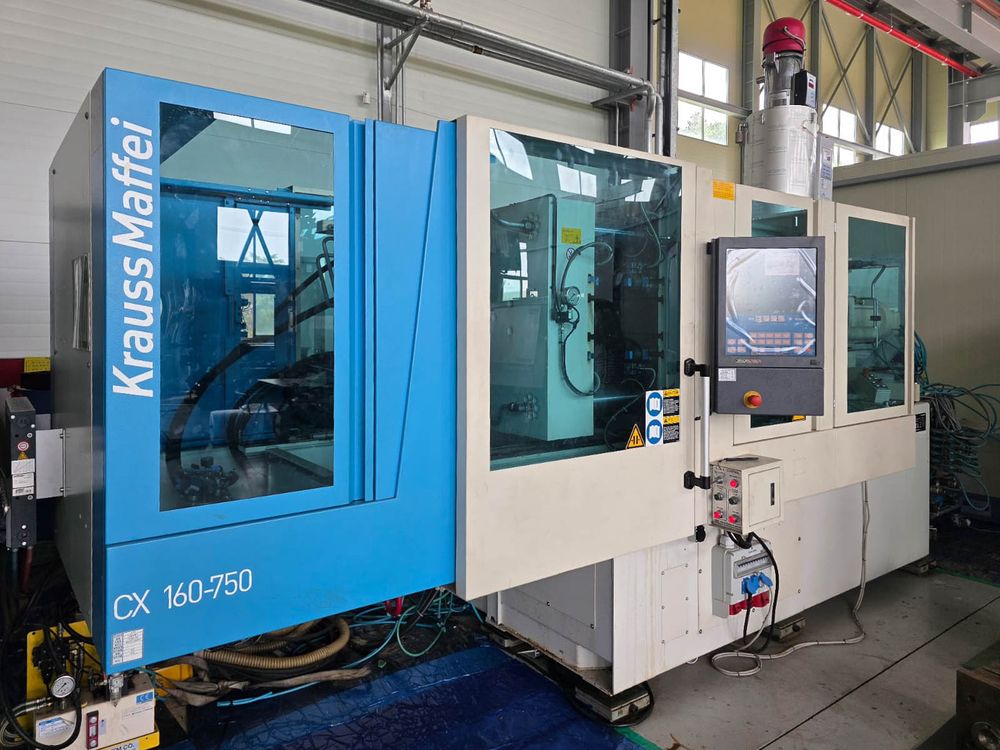

Krauss Maffei KM 160 - 750 CX 160 T
Ref :
2719806-6-GO
Condition :
Used
Manufacturer :
Krauss Maffei
Model :
KM 160 - 750 CX
Capacity :
160 T
Year(s) :
2012
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
31 Oct. 2025
OPTIONAL Dosing System for inmold of poly urethane
Clamping force 1.600 kN
Control MC 5
Core pulls 2
Daylight between platens max 950 mm
Dimensions (long x wide x high) 5.100 x 1.600 x 2.100 mm
Distance between tie-bars (h x v) 520 x 520 mm
Ejector stroke / force max. 150 / 22 mm / kN
Injection volume 318 cm³
Mould height min 300 mm
Platen size (h x v) 820 x 845 mm
Power: installed max 18,5 kW
Screw diameter 45 mm
Weight 6.600 kg
