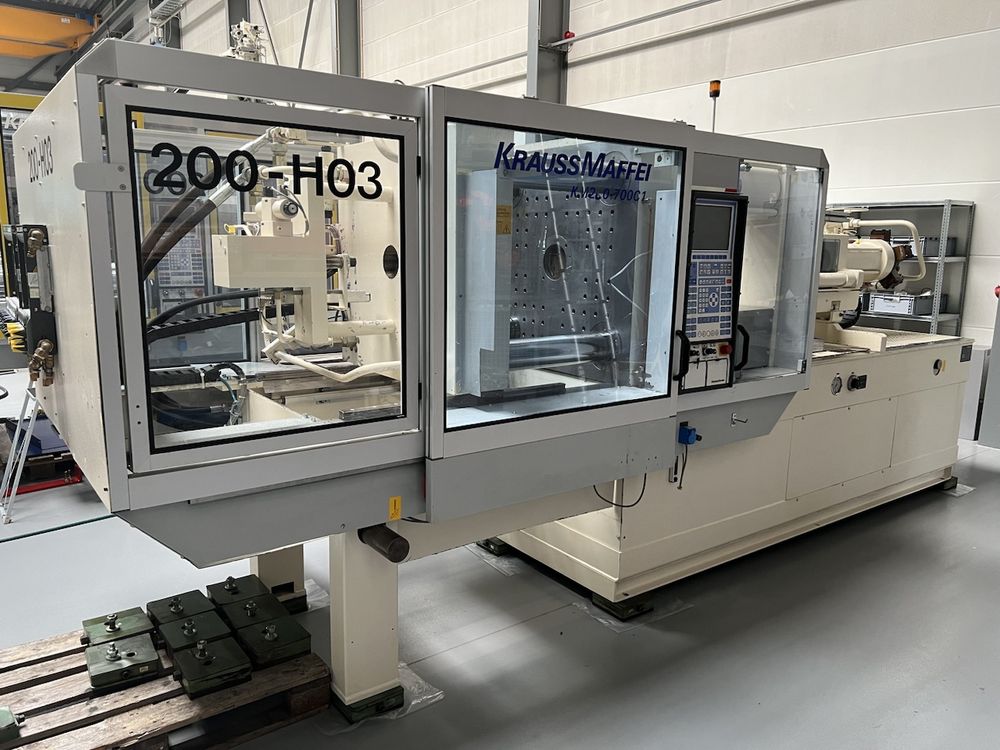

Krauss Maffei KM 200 - 700 C1 200 T

Ref : 2536533-6-AW
Condition : Used
Manufacturer : Krauss Maffei
Model : KM 200 - 700 C1
Capacity : 200 T
Year(s) : 2002
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 27 Jul. 2023

Controlversion MC 4
Screentext German

Clamping unit:
Clamping force 2000 kN
Mould opening force, max. 101 kN
Travel force movable platen opening 50 kN
Travel force movable platen closing 42 kN
Size of mould platens (h x v) 915 x 915 mm
Distance between tie bars (h x v) 560 x 560 mm
Mould opening stroke 700 mm
Mould height min 350 mm
Max. daylight 1050 mm
Hydraulic ejector - stroke 200 mm
Ejector force 58/28 kN

Injection unit:
Screw diameter 45 mm
Ls/D ratio 22
Injection pressure 2336 bar
Stroke volume 305 ccm
Shot weight (PS) 27 gr.
Injection rate 200 ccm/s
Screw speed 342 1/min
Plasticising rate max. 37 g/s
Nozzle pressure 84 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 30 kW
Installed heating capacity 16 kW
Adjustable barrel heating zones 5
Reservoir capacity 525 ltr.

Dimensions and weights:
Dimensions of the machine ca. 5,50 x 2,20 x 2,30 m
Total machine weight 10.530 kg
Max. mould weight 2535 kg

Accessories:
Anti vibration pads

Additional Options:
1 x air valve
8 x hot runner controller
1 x hydr. core pull
Robot interface according to Euromap 12
